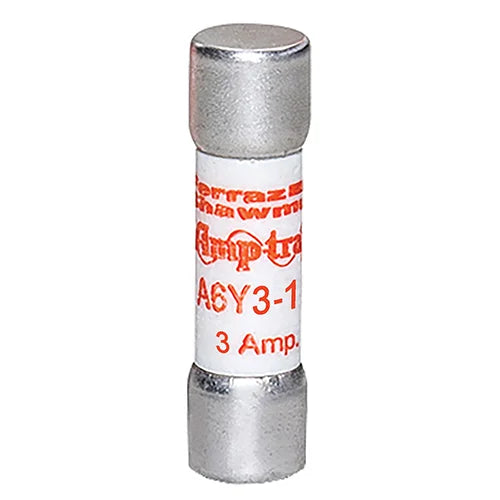

Mersen A6Y3-1 Fuse A6Y 500VAC 500VDC 3A Type 1

Product Description

The MERSEN A6Y3-1 is a Fuse A6Y designed for current-limiting applications. These Form 600 fuses are the original current-limiting fuses, predating all the standards. It has a 500V DC rating and provides a high degree of current limitation in AC and DC applications. Types 1 and 3 are dimensionally interchangeable with Class H and K fuses.

• 500V DC rating (through 600A)
• High degree of current limitation in AC and DC applications
• Types 1 and 3 are dimensionally interchangeable with Class H and K fuses

Product Highlights

The MERSEN A6Y3-1 fuse is ideal for special fusing applications requiring current limitation in both AC and DC circuits.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: A6Y3-1
• Country of Origin: Mexico

Technical Specifications

• Item number: A6Y3-1
• Description: Fuse A6Y 500VAC 500VDC 3A Type 1 Ferrule Amp-Trap
• EAN/UPC Code: 782001902292
• Rated voltage AC UL: 500 V
• Rated voltage DC UL: 500 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 3 A
• AC or DC: AC/DC
• Mounting: Clip
• AC Max I.R./Breaking Capacity: I1: 200 kA
• Connection/Terminal Material: Tin-Plated Copper
• Connection/Terminal Type: Ferrule
• Product Diameter: 0.81 in
• Product Length: 5 in
• Product group: Special Purpose Fuses
• Body/Insulating Material: GMG
• L/R (ms): 10 ms
• Brand: Mersen
• Body Size: 13/16 in Dia x 5 in L
• Body Type: Cylindrical
• Class: K/Form 600
• Interrupt Rating: 200 kA
• Material: GMG
• Series: A6Y
• Type: Type 1 Special Purpose Standard
• Voltage Rating: 600 VAC
• Fuse Type/Class: Form 600 Current Limiting
• Voltage: 600V AC, 500V DC
• Amps: 3A
• kA IR VAC/VDC: 200/100
• Length: 5 in.
• Diameter: 0.81 in.
• Mfr. #: A6Y3-1/2-2B
• Mfr.: Mersen
