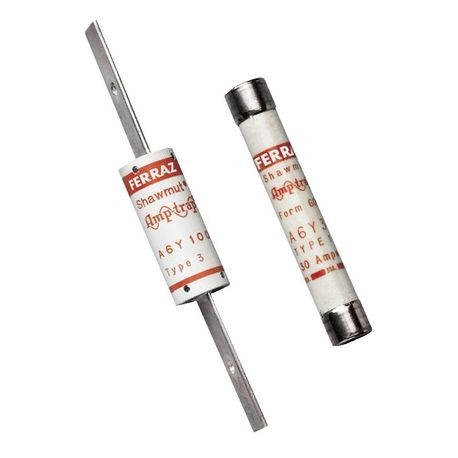

Mersen A6Y20-11 Current Limiting Fuse, 20 A, 600 VAC/500 VDC, 100/200 kA Interrupt, Class: H

Product Description

The Mersen A6Y20-11 is a current limiting fuse designed for AC and DC applications. This fuse operates at 20 Amperes and is rated for 600 Volts AC or 500 Volts DC. It offers a remarkable interrupt rating of 100/200 kA. Mersen fuses are noted for their high current limitation capabilities. They were among the first to set standards in current limiting fuses. Types 1 and 3 of Form 600 fuses are dimensionally interchangeable with class H and K fuses, while types 4 and 5 are not interchangeable due to unique rejection dimensions.

• High current limitation for AC and DC applications
• Rated for 600 VAC and 500 VDC
• UL 248-1 certified, CE certified, and RoHS compliant

Product Highlights

The Mersen A6Y20-11 provides significant protection in electrical circuits, preventing damage from overcurrent situations.

Product Information

Standard Information

• Brand: Mersen
• MPN: A6Y20-11

Technical Specifications

• Mounting Type: Clip
• Class: H
• Interrupt Rating: 100/200 kA
• Voltage Rating: 600 VAC/500 VDC
• Material: Glass Melamine
• Amperage Rating: 20 A
• Series: A6Y
• Body Size: 13/16 in Dia x 5 in L
• Terminal Type: Ferrule/Blade
• Body Style: Cylindrical
• UPC: 782001901776
• UNSPSC: 39121600
