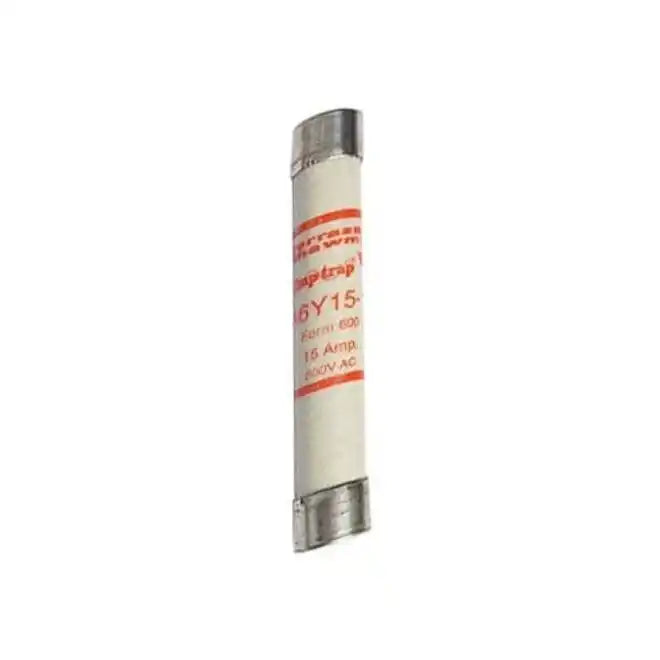

Mersen A6Y15-1 Fuse A6Y 600VAC 500VDC 15A Type 1 Ferrule Amp-Trap

Product Description

The MERSEN A6Y15-1 fuse is a Form 600 fuse, the original current-limiting fuse. With a 500V DC rating, it's useful for special fusing applications. It provides a high degree of current limitation in AC and DC applications. Types 1 and 3 are dimensionally interchangeable with Class H and K fuses.

• Rated voltage AC UL: 600 V
• Rated voltage DC UL: 500 V
• Ampere Rating: 15 A

Product Highlights

This Mersen fuse offers reliable current limitation for both AC and DC applications and is suitable for various special purpose fusing needs.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: A6Y15-1
• Country of Origin: Japan

Technical Specifications

• Item number: A6Y15-1
• Description: Fuse A6Y 600VAC 500VDC 15A Type 1 Ferrule Amp-Trap
• EAN/UPC Code: 782001902407
• Rated Voltage AC UL: 600 V
• Rated Voltage DC UL: 500 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 15 A
• AC or DC: AC/DC
• Mounting Type: Clip
• AC Max I.R./Breaking Capacity: I1: 200 kA
• Connection/Terminal Material: Tin-Plated Copper
• Terminal Type: Ferrule
• Product Diameter: 0.81 in
• Product Length: 5 in
• Product group: Special Purpose Fuses
• Body/Insulating Material: GMG
• L/R (ms): 10 ms
• Product Weight: 0.2 lb
• UNSPSC Code: 39120000
• Alternate Mfr Part Number: K219935
• Brand: Mersen
• Breaking Capacity: 200 kA
• Current Rating: 15 A
• Manufacturer Part Number: A6Y15-1
• Primary Type: Single Use Fuses
• Series: A6Y Series
• Voltage Rating: 600 V
• Country of Origin: Japan
• Fuse Type: Current Limiting
• Fuse Class: H
• Volt Rating: 600V AC, 500V DC
• Overall Length: 5 in
• Diameter: .8125 in
• Rated Voltage AC: 500VAC
• Rated Voltage DC: 500VDC
• Frequency: 50/60Hz
• Rated Current: 15A
• Short Circuit Current Rating (SCCR): 200kA
• Body Type: Cylindrical
• Class: K/Form 600
• Interrupt Rating: 200 kA
• Material: GMG
• Mounting type: Clip
• Manufacturer Name: MERSEN
• UNSPSC: 39121606
• UPC: 00782001902407
• Category: Circuit Protection
• Packaging: Bulk
• Manufacturer: Mersen USA Newburyport-MA L.L.C.
• Part Status: Active
• Amperage Rating: 15 A
