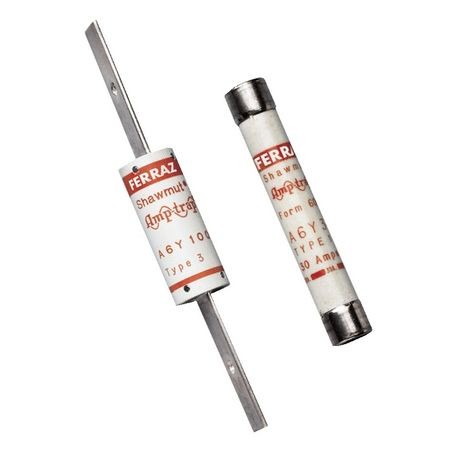

Mersen A6Y10-11 Current Limiting Fuse 10 A 600 VAC/500 VDC 100/200 kA Interrupt

Product Description

The Mersen A6Y10-11 is a current limiting fuse rated for ten amps at six hundred volts AC and five hundred volts DC. It has a high interrupt capability of one hundred to two hundred kiloamperes. The cylindrical body design ensures compatibility in various applications requiring reliable overcurrent protection.

• Cylindrical body style for easy integration
• Designed for both AC and DC operations
• High interrupt ratings protect against overcurrent situations

Product Highlights

This fuse is part of the Form 600 series, making it suitable for special applications requiring significant current limitation.

Product Information

Standard Information

• Brand: Mersen
• Class: H

Technical Specifications

• Amperage Rating: 10 A
• Voltage Rating: 600 VAC/500 VDC
• Interrupt Rating: 200/100 kA
• Body Style: Cylindrical
• Body Size: 13/16 in Dia x 5 in L
• Terminal Type: Ferrule/Blade
• Mounting Type: Clip
• Material: Glass Melamine
