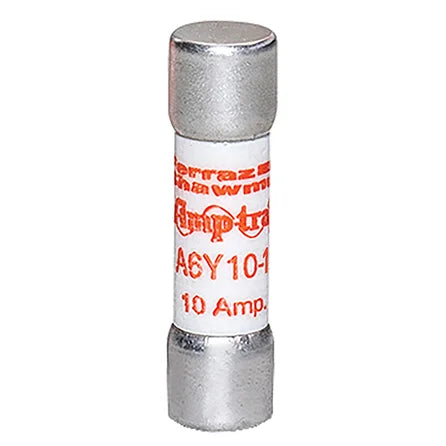

Mersen A6Y10-1 Fuse A6Y 600VAC 500VDC 10A Type 1 Ferrule Amp-Trap

Product Description

The MERSEN A6Y10-1 is a Form 600 fuse, an original current-limiting fuse with a 500V DC rating suitable for special fusing applications. It provides a high degree of current limitation in AC and DC applications. Type 1 is dimensionally interchangeable with Class H and K fuses.

• Original current-limiting fuse
• 500V DC rating (through 600A)
• High degree of current limitation in AC and DC applications

Product Highlights

The MERSEN A6Y10-1 fuse offers reliable circuit protection with a 600VAC/500VDC voltage rating and 10A current rating. It is ideal for AC and DC applications requiring current limitation.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: A6Y10-1
• Country of Origin: Mexico

Technical Specifications

• Item number: A6Y10-1
• Description: Fuse A6Y 600VAC 500VDC 10A Type 1 Ferrule Amp-Trap
• EAN/UPC Code: 782001902360
• Rated voltage AC UL: 600 V
• Rated voltage DC UL: 500 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 10 A
• AC or DC: AC/DC
• Mounting: Clip
• AC Max I.R./Breaking Capacity: I1: 200 kA
• Connection/Terminal Material: Tin-Plated Copper
• Connection/Terminal Type: Ferrule
• Product Diameter: 0.81 in
• Product Length: 5 in
• Product group: Special Purpose Fuses
• Body/Insulating Material: GMG
• L/R (ms): 10 ms
• Product Weight: 0.2 lb
• UNSPSC Code: 39120000
• Alternate Mfr Part Number: N218374
• Brand: Mersen
• Breaking Capacity: 200 kA
• Current Rating: 10 A
• Manufacturer Part Number: A6Y10-1
• UPC Code: 0782001902360
• Fuse Type/Class: Form 600 Current Limiting
• Voltage: 600V AC, 500V DC
• Amps: 10A
• kA IR VAC/VDC: 200/100
• Length: 5 in.
• Diameter: 0.812 in.
• Category: Circuit Protection
• Electrical, Specialty Fuses: Electrical, Specialty Fuses
• Packaging: Bulk
• Manufacturer: Mersen USA Newburyport-MA L.L.C.
• Part Status: Active
• Body Type: Cylindrical
• Class: K/Form 600
• Interrupt Rating: 200 kA
• Series: A6Y
• Terminal Type: Ferrule
• Type: Type 1 Special Purpose Standard
• Country of origin: MX
• Material: GMG
• Mounting type: Clip
