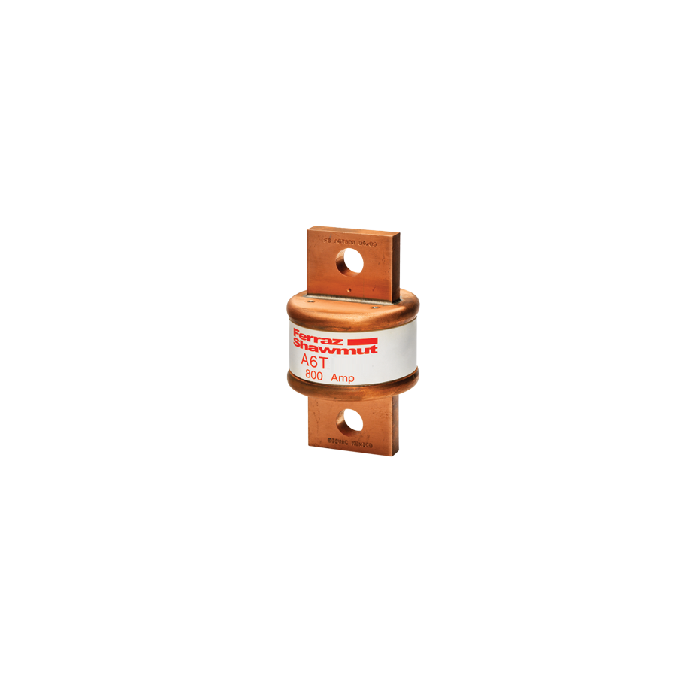

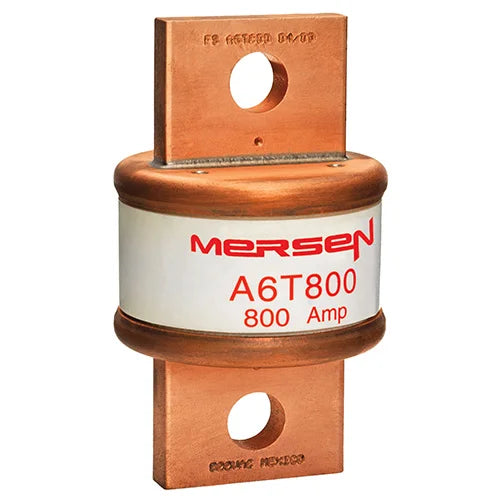

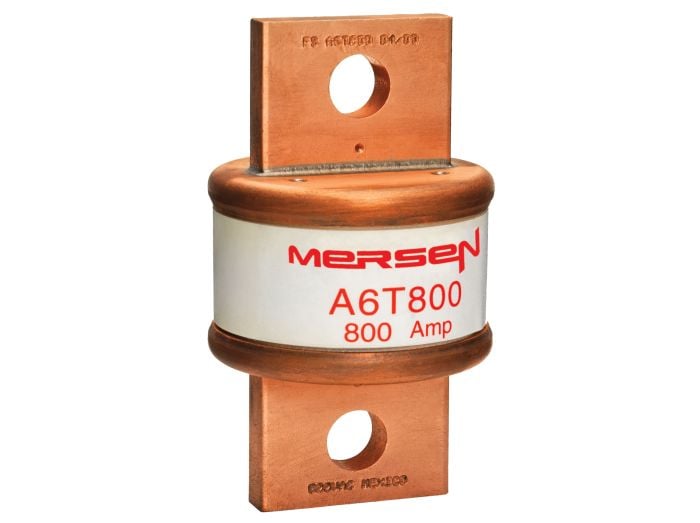

Mersen A6T800 fuse A6T class T fast-acting 600VAC 300VDC 800A 1 EA

Product Description

The MERSEN A6T800 is a fast-acting Class T fuse, combining high current-limitation and a small physical size. Its unique dimensions prevent substitution with fuses of lower voltage ratings or current-limiting capability. Featuring glass melamine bodies for superior dimensional stability and catalog numbers stamped into the blades for permanent identification, this 600VAC 300VDC 800A fuse is suitable for various electrical applications.

• Extremely current-limiting for low peak let-thru current
• Unique dimensions prevent replacement by other fuse classes
• Blade-stamped catalog numbers for permanent identification

Product Highlights

High current-limiting capability with a compact design for versatile applications.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: A6T800
• Country of Origin: Mexico

Technical Specifications

• Sub Brand: Amp-Trap
• Made in USA: No
• Amperage: 800 A
• Application: Load centers, Panelboards, Switchboards, Circuit breakers, Metering centers
• Connection Type: Blade
• Mounting Type: Bolted
• Standards/Approvals: UL 248-15 File E2137, CSA C22.2 No. 248.15, UL 248 (DC), CE
• Fuse Class: UL Class T
• AC Voltage Rating: 600V AC
• DC Voltage Rating: 300V DC
• Interrupt Rating AC: 200 kA at 600V AC
• Interrupt Rating DC: 100 kA at 300V DC
• Speed/Characteristic: Fast-Acting
• Element Type: Single
• Body Style: Blade
• Body Material: Glass/Melamine
• Equivalent Series: A6T, JJS, JLLS
• Visual Indication: Nonindicating
• Connection Material: Copper
• Fits Fuse Block Style: Nonrejection
• Functionally Equal To: Bussmann JJS, Littelfuse JLLS
• Compatible Fuse Block Series: 6TFB, GFB
• Environmental Compliance: RoHS 2011/65/EU Compliant
• Frequency: 50/60 Hz
• Product Group: Low Voltage UL/CSA Fuses
• Poles: 1
• Frame Type: A6T
• Manufacturer: Mersen
• MPN: A6T800
• Series: A6T
• Family Series: Mersen Fuses, A6T Series
• Trip Indicator: No
• Alarm Contacts: Yes
• Current Limiting: Extremely
