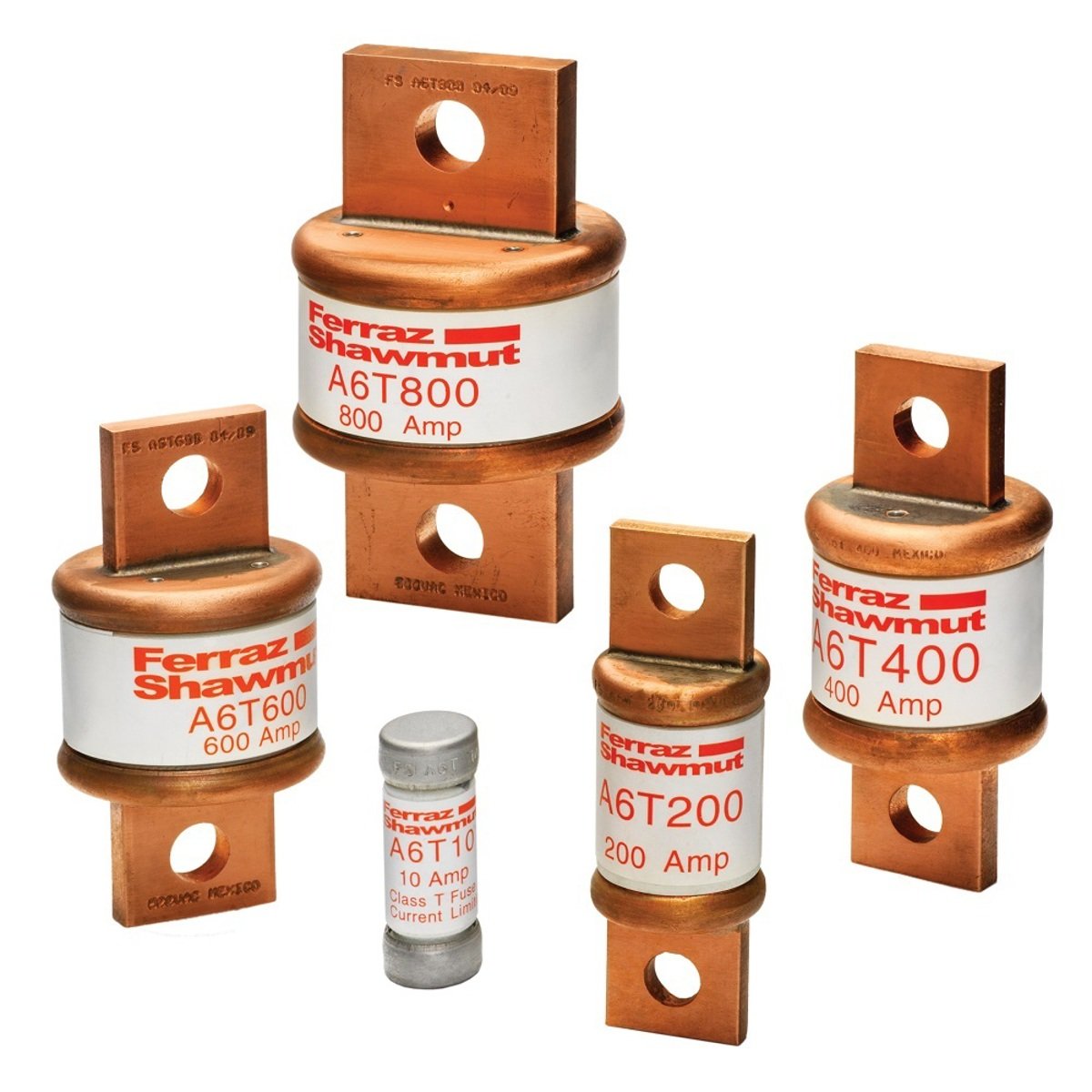

Mersen A6T80 Fuse A6T - Class T - Fast-Acting 600VAC 300VDC 80A Blade

Product Description

The Mersen A6T80 is a fast-acting fuse designed for a wide range of applications including load centers, panelboards, switchboards, circuit breakers, and metering centers. This Class T fuse has a voltage rating of six hundred volts AC and three hundred volts DC, with an amperage rating of eighty amps. The unique dimensions of this fuse prevent the use of other classes with lower voltage ratings or current-limiting capabilities.

• Fast-acting fuse for reliable circuit protection.
• Current limitation for low peak let-through current.
• Blade connection for easy installation.

Product Highlights

This fuse features a small physical size with extreme current-limiting capabilities, ensuring safety and reliability in various electrical systems.

Product Information

Standard Information

• Manufacturer: Mersen
• Catalog Number: A6T80

Technical Specifications

• Voltage Rating: 600 VAC / 300 VDC
• Amperage Rating: 80 A
• Interrupt Rating: 200 KA
• Mounting Type: Blade
• Country of Origin: Mexico
• UL Approval: Standard 248-15
• CSA Approval: Standard C22.2 No. 248.15
• Body Size: 2.95 x 0.82 inches
