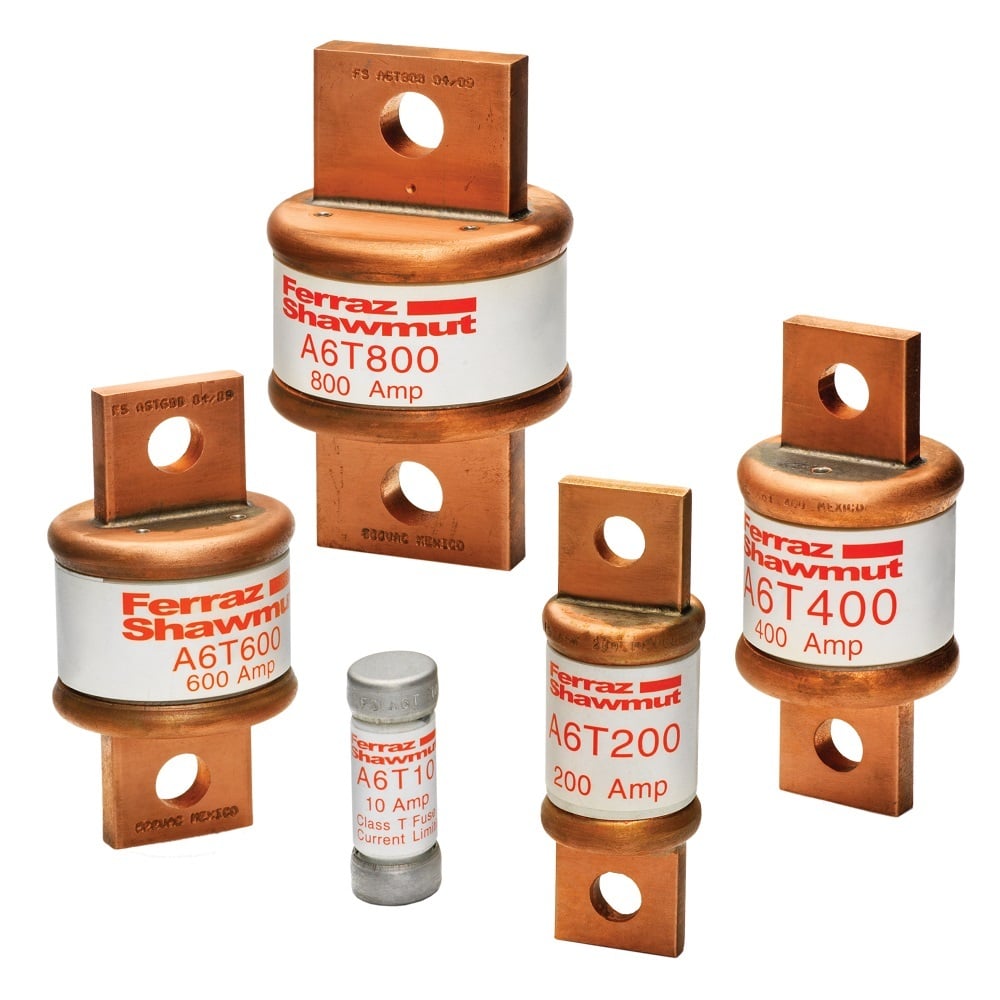

Mersen A6T40 Fuse A6T - Class T - Fast-Acting 600VAC 300VDC 40A Ferrule

Product Description

The Mersen A6T40 is a Class T fast-acting fuse designed for operational safety in electrical systems. This fuse is suitable for use in load centers, panelboards, switchboards, and circuit breakers. It has a voltage rating of six hundred volts alternating current and three hundred volts direct current, ensuring reliable protection of devices.

• Amperage rating: forty amps
• Interrupt rating: two hundred kiloamperes
• Connection type: ferrule

Product Highlights

This fuse is engineered to handle high current limitations while maintaining a compact size. Its unique design prevents the use of incorrect fuse types. The glass melamine body provides durability and stability.

Product Information

Standard Information

• Brand: Mersen
• Catalog Number: A6T40

Technical Specifications

• Voltage Rating: 600 VAC / 300 VDC
• Amperage Rating: 40 A
• Interrupt Rating: 200 KA
• Type: Fast Acting
• Mounting Type: Ferrule
• Body Type: Melamine
• Diameter: 0.81 inches
• Overall Length: 1.57 inches
• Country of Origin: Mexico
• Standards: UL 248-15, CSA C22.2 No. 248.15
