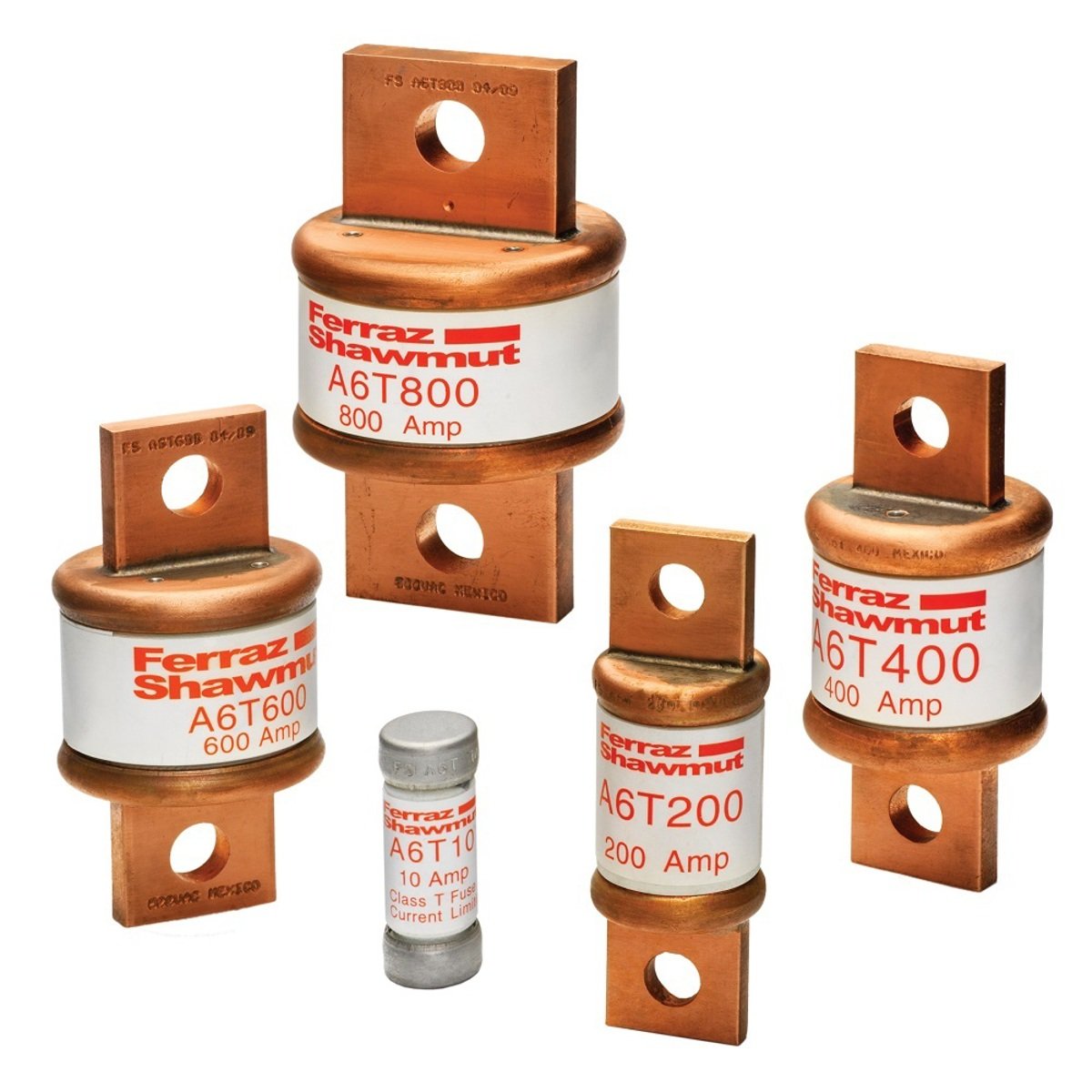

Mersen A6T15 Fuse A6T - Class T - Fast-Acting 600VAC 300VDC 15A Ferrule

Product Description

Mersen A6T15 is a fast-acting Class T fuse designed for both 600VAC and 300VDC applications. This fuse is suitable for use in various electrical systems, including load centers, panelboards, switchboards, circuit breakers, and metering centers. The A6T15 is known for its low peak let-thru current and current limiting capabilities, making it an essential component for protecting electrical circuits.

• Amperage Rating: 15 A
• Interrupt Rating: 200 kA
• Mounting Type: Ferrule

Product Highlights

The Mersen A6T15 provides safety and reliability in electrical systems through its unique design and performance specifications. It prevents the substitution of lower-rated fuses, ensuring optimal protection.

Product Information

Standard Information

• Manufacturer: Mersen
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: A6T15
• Voltage Rating: 600 VAC / 300 VDC
• Connection: Ferrule
• Special Features: Extremely current-limiting, unique dimensions prevent incorrect substitutions, catalog numbers blade-stamped for identification
• Body Type: Melamine
• Size: 1.5 x 0.57 inches
