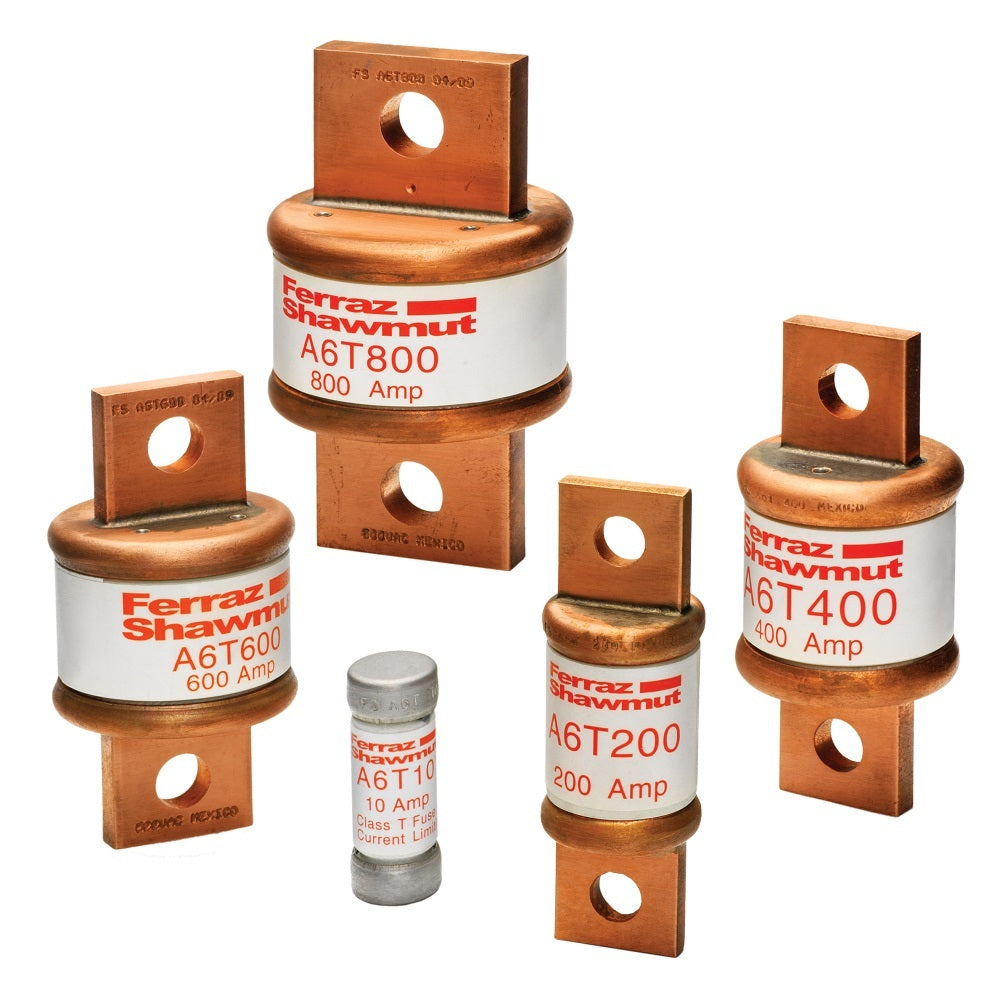

Mersen A6T10 Fuse A6T - Class T - Fast-Acting 600VAC 300VDC 10A Ferrule

Product Description

The Mersen A6T10 is a Class T fast-acting fuse rated for six hundred volts alternating current and three hundred volts direct current at ten amps. This fuse is designed to provide superior protection in various electrical applications.

• Meets Class T fuse standards for overload and short-circuit protection.
• Compact design allows for use in tight spaces.
• UL approved for safety and compliance.

Product Highlights

This fast-acting fuse combines high current limitation with a small physical size, ensuring effective circuit protection in load centers, panelboards, and switchboards.

Product Information

Standard Information

• Brand: Mersen
• MPN: A6T10

Technical Specifications

• Catalog Number: A6T10
• Amperage Rating: 10 A
• Voltage Rating: 600 VAC, 300 VDC
• Interrupt Rating: 200 kA
• Connection Type: Ferrule
• Mounting Type: Clip
• Application: Load centers, Panelboards, Switchboards, Circuit Breakers
• Country of Origin: Mexico
