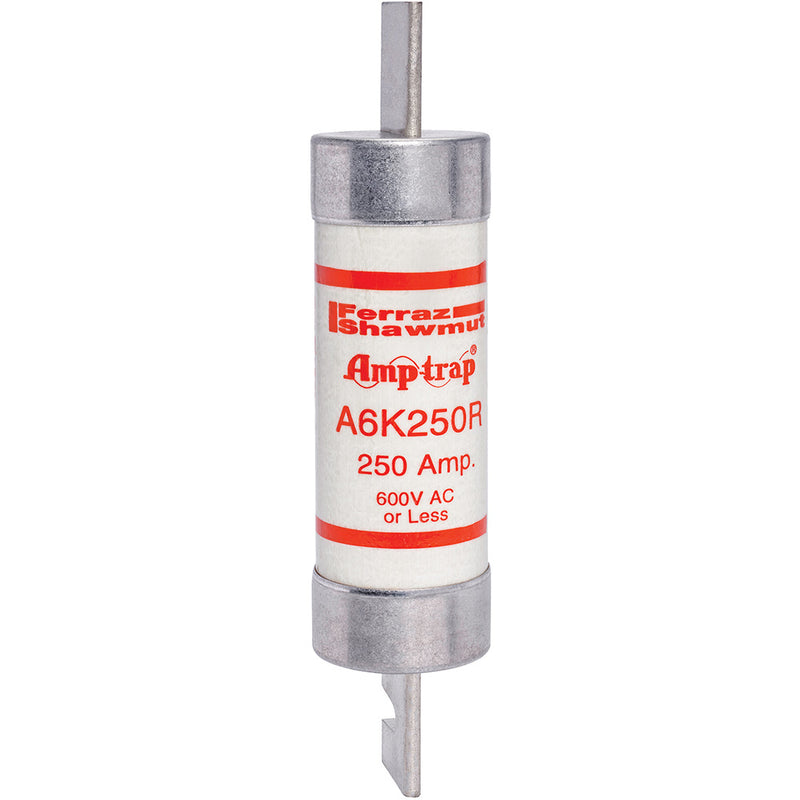

Mersen A6K250R Fuse A6K-R Class RK1 Fast-Acting 600VAC 300VDC 250A Blade Amp-Trap

Product Description

The MERSEN A6K250R is a Class RK1 fast-acting fuse with a blade connection. This Amp-Trap fuse is rated for 600VAC and 300VDC with a 250A amperage rating. It is suitable for load centers, panelboards, switchboards, and feeder circuits. Offers a high degree of current limitation for low peak let-thru current.

• Fast-acting fuse for reliable circuit protection.
• Rejection style design prevents replacement by other fuse classes.
• High interrupt rating of 200kA.

Product Highlights

The MERSEN A6K250R fuse provides excellent protection in applications with high available short-circuit currents.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: A6K250R
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: A6K250R
• Manufacturer: Mersen
• Brand: Mersen
• Sub Brand: Amp-Trap®
• Country of Origin: Mexico
• Made in USA: No
• Amperage Rating: 250 A
• Application: Load centers Panelboards Switchboards Bus duct Feeder circuits Non-inductive loads Lighting circuits
• Connection: Blade
• Interrupt Rating: 200 kA
• Mounting: Clip
• Special Features: Rejection style design prevents replacement by other fuse classes Fiberglass body provides dimensional stability in harsh industrial environments Easy-to-read imprint label for quick recognition and replacement High degree of current limitation for low peak let-thru current
• Standard: UL listed to standard 248-12 File E2137 CSA certified to standard C22.2 No. 248.12 Self-certified for DC per UL248
• UPC: 782001915841
• GTIN: 00782001915841
• Item Type: Class RK1
• Voltage Rating: 600 VAC
• Speed: Fast Acting
• Body Style: Blade
• Fuse Speed: Fast Acting
• Body Material: Polytube
• AC Voltage Rating: 600V
• DC Voltage Rating: 300V DC
• Connection Material: Tin-Plated Copper
• Fuse Voltage Rating: 600V
• Rated voltage AC UL: 600 V
• Rated voltage DC UL: 300 V
• Frequency (Hz): 50/60 Hz
• AC or DC: AC/DC
• Fuse Class: Class RK1
• Speed/Characteristic: Fast-Acting
• Connection/Terminal Material: Tin-Plated Copper
• Connection/Terminal Type: Blade
• Item Name: Power Fuse
• Type: North American Power Fuses
• Mounting Type: Clip
• Terminal Connection: Blade
• Construction: Fiberglass
• Standards: UL 24812, CSA File Number E2137, CSA C22.2 No. 248.12
• Part Number: A6K250R
• Category: Fuse
• Item Subcategory: Low Voltage Fuse
• Family: A6K-R Series
• Aic Rating: 200kA@600V
• Amps: 250A
• Item: Fuse
• Characteristics: FAST ACTING
• Interrupting Rating: 200 KILOAMPERE
• Terminal Type: BLADE
• CURRENT RATING: 250 AMPERE
• APPROVAL: UL 248-12, CSA C22.2
• ADDITIONAL INFORMATION: CURRENT LIMITING REJECTION STYLE
