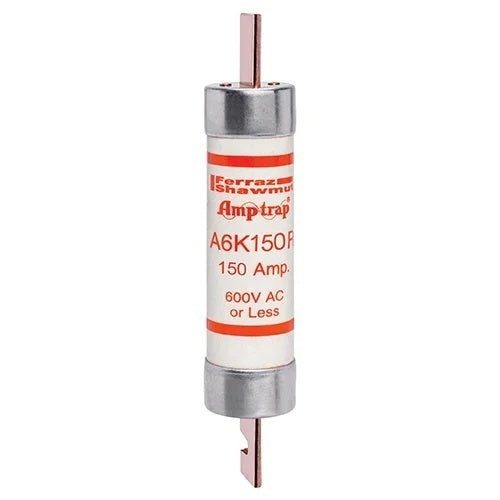

Mersen A6K150R Fuse A6K-R - Class RK1 - Fast-Acting 600VAC 300VDC 150A Blade

Product Description

The Mersen A6K150R is a Class RK1, fast-acting fuse designed for excellent protection where high available short-circuit currents exist. This Amp-Trap fuse is rated for 600VAC and 300VDC at 150A. It is suitable for load centers, panelboards, switchboards, bus ducts, and feeder circuits, as well as non-inductive and lighting circuits.

• Rejection style design prevents replacement by other fuse classes
• Fiberglass body provides dimensional stability in harsh industrial environments
• Easy-to-read imprint label for quick recognition and replacement

Product Highlights

The Mersen A6K150R fuse offers a high degree of current limitation for low peak let-thru current.

Product Information

Standard Information

• Brand: Mersen
• Manufacturer Part Number: A6K150R
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: A6K150R
• Manufacturer: Mersen
• Brand: Mersen
• Sub Brand: Amp-Trap®
• Country of Origin: Mexico
• Made in USA: No
• Amperage Rating: 150 A
• Application: Load centers Panelboards Switchboards Bus duct Feeder circuits Non-inductive loads Lighting circuits
• Connection: Blade
• Interrupt Rating: 200 kA
• Mounting: Clip
• Standard: UL listed to standard 248-12 File E2137 CSA certified to standard C22.2 No. 248.12 Self-certified for DC per UL248
• UPC: 782001915780
• GTIN: 00782001915780
• Item Type: Class RK1
• Voltage Rating: 600 V
• Class: Class RK1
• Speed: Fast Acting sec
• Fuse Amps: 150A
• Body Style: Blade
• Fuse Speed: Fast Acting
• Body Material: Polytube
• AC Voltage Rating: 600V
• DC Voltage Rating: 300V DC
• Connection Material: Tin-Plated Copper
• Fuse Voltage Rating: 600 Volts
• Primary Type: Single Use Fuses
• Series: A6K Series
• Fuse Type (UL): Class RK1
• Fuse Amperage Rating: 150 Amp
• Component: Fuse
• Connection/Terminal Type: Blade
• Current Rating (Amps): 150A
• Voltage Rating - AC: 600 VAC
• Voltage Rating - DC: 300 VDC
• Response Time: Fast Blow
• Applications: Electrical, Industrial
• Approval Agency: CSA, UL
• Breaking Capacity @ Rated Voltage: 200kA AC, 20kA DC
• Package / Case: Cylindrical, Blade Terminals
• Size / Dimension: 1.811" Dia x 9.606" L (46.00mm x 244.00mm)
