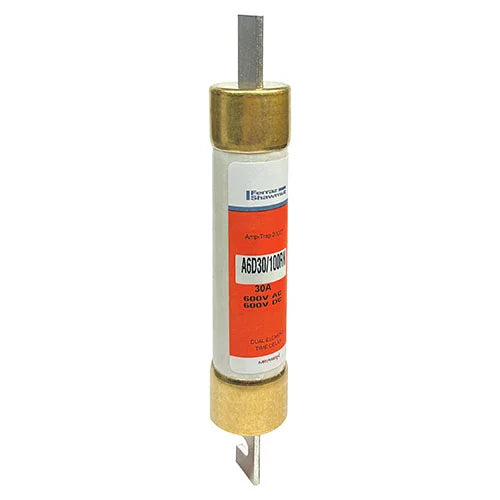

Mersen A6D30/100RN Fuse A6D-R 30A

Product Description

The MERSEN A6D30/100RN Fuse A6D-R is a Class RK1 time-delay fuse designed for 600VAC and 600VDC systems, rated at 30A. This fuse provides a safe, permanent solution for decreasing your current rating without needing a Fuse Reducer accessory. It offers trusted protection levels in a larger body.

• Safe, permanent solution for decreasing your current rating
• Does not require a Fuse Reducer accessory
• UL Listed reduced rating Class RK1 fuses

Product Highlights

Class RK1 time-delay fuse with a 30A rating, ideal for reducing current without additional accessories.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: A6D30/100RN

Technical Specifications

• Item number: A6D30/100RN
• Description: Fuse A6D-R - Reducer Fuses - Class RK1 - Time-Delay 600VAC 600VDC 30A Blade Amp-Trap 2000®
• EAN/UPC Code: 0782001511685
• Frequency (Hz): 50/60 Hz
• AC or DC: AC/DC
• Fuse Class: Class RK1
• Speed/Characteristic: Time Delay
• Mounting: Clip
• AC Max I.R./Breaking Capacity: I1: 200 kA
• Connection/Terminal Material: Tin-Plated Copper
• Connection/Terminal Type: Blade
• Product Diameter: 1.31 in
• Product Length: 7.88 in
• Body/Insulating Material: PolyTube
