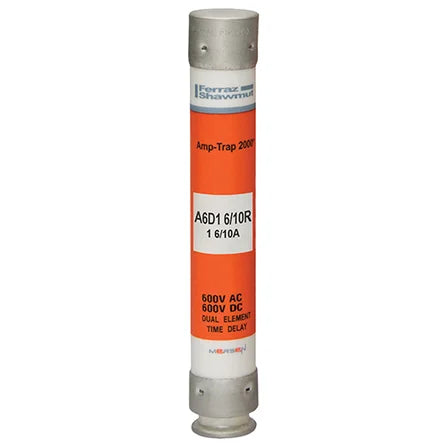

Mersen A6D1-6/10R Fuse, Time Delay, 1-6/10A, A6D-R Series, 600V AC, 600V DC, 5 inches L x 13/16 inches dia

Product Description

The MERSEN A6D1-6/10R is a time-delay fuse from the A6D-R Series, designed for 600V AC and 600V DC applications. This Class RK1 fuse features a cylindrical body and nonindicating design. It has an interrupt rating of 100kA at 600V DC and 200kA at 600V AC. The fuse is suitable for motor and non-motor loads.

• Time Delay functionality for handling inrush currents.
• Rated for both 600V AC and 600V DC systems.
• Class RK1 protection with a cylindrical body style.

Product Highlights

Offers reliable circuit protection with time-delay functionality and high interrupt capacity. Ideal for use in mains, feeders, and branch circuits.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: A6D1-6/10R
• Country of Origin: Mexico

Technical Specifications

• Amps [Specifications]: 1-6/10A
• Item [Specifications]: Fuse
• Class [Specifications]: RK1
• Speed [Specifications]: Time Delay
• Length [Specifications]: 5"
• Series [Specifications]: A6D-R
• Element [Specifications]: Dual
• Diameter [Specifications]: 13/16"
• Mounting Type: Clip
• Fuse Amps [Specifications]: 1-6/10A
• Fuse Size [Specifications]: 5" L x 13/16" dia
• Standards [Specifications]: CSA C22.2 No. 248.12, DC UL 248, UL 248-12 File E2137
• Body Style [Specifications]: Cylindrical
• Fuse Speed [Specifications]: Time Delay
• Body Material [Specifications]: Polyester
• Connection Type: Ferrule
• Fuse Holder Code [Specifications]: P
• Interrupt Rating: 200 kAIC
• AC Voltage Rating [Specifications]: 600V AC
• DC Voltage Rating [Specifications]: 600V DC
• Equivalent Series [Specifications]: A6D-R, LLSRK-ID, LPS-RK-SPI
• Visual Indication [Specifications]: Nonindicating
• Fuse Voltage Rating [Specifications]: 600VAC/DC
• Fits Fuse Block Style [Specifications]: Rejection
• Functionally Equal To [Specifications]: Bussmann LPS-RK-SPI, Littelfuse LLSRK-ID
• Fuse Interrupt Rating [Specifications]: 200kA at 600VAC, 100kA at 600VDC
• Rejection / Nonrejection [Specifications]: Rejection
• Length (Straight Wireway) [Specifications]: 5 in
• Indicating / Nonindicating [Specifications]: Nonindicating
• Equivalent Brand and Series [Specifications]: Bussmann LPS-RK-SPI, Littelfuse LLSRK-ID, Mersen A6D-R
• Compatible Fuse Block Series [Specifications]: 2HKRFB, 6HKRFB
• Amperage: 1.6 Amp
• Applications: Motors Safety Switches Transformers Disconnects Control Panels All General-purpose Circuits
• Frequency: 50/60 Hz
• Fuse Class: Class RK1
• Insulation Material: PolyTube
• Rated Voltage AC: 600 V
• Rated Voltage DC: 600 V
• TC Connection: Ferrule
• Terminal Material: Tin-Plated Copper
• Terminal Type: Ferrule
• Type: North American Power Fuses
• Voltage: 600 VAC
• Class: RK-1
