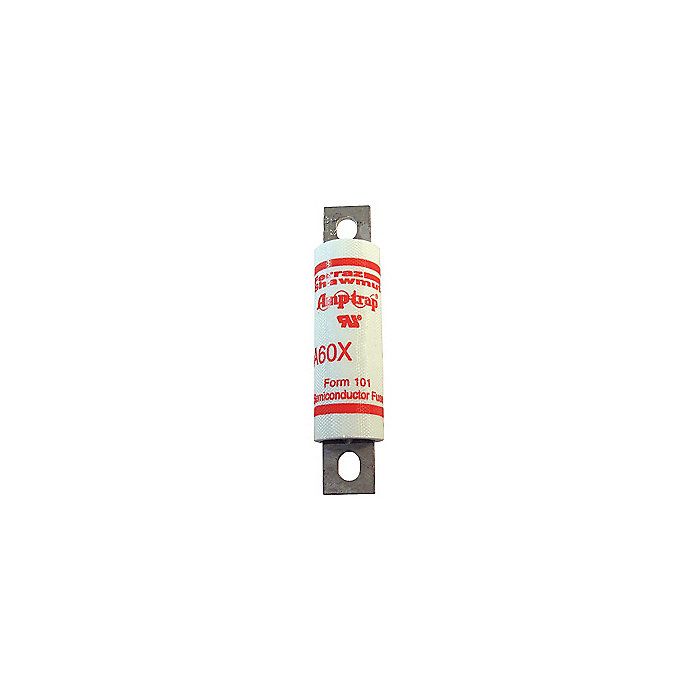

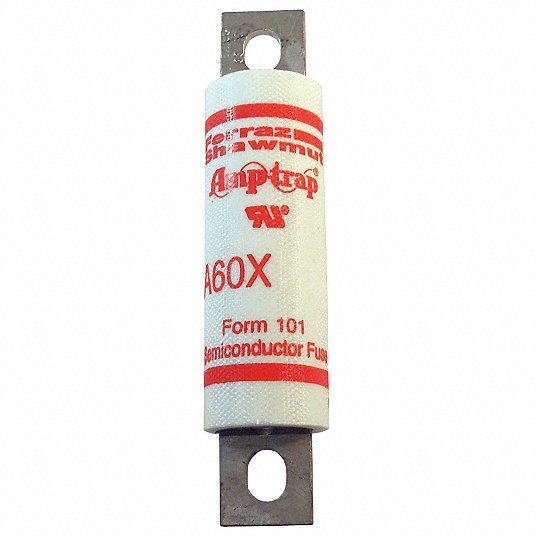

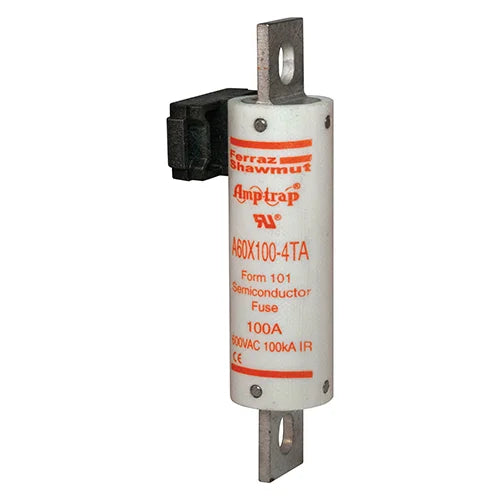

Mersen A60X100-4 High Speed Fuse Amp-Trap A60X 600VAC 100A Bolted Blade

Product Description

The MERSEN A60X100-4 is a high-speed Amp-Trap® Form 101 fuse, popular for protecting higher voltage heavy rectifiers such as traction rectifiers. These 600VAC, 100A fuses can carry long sustained overloads common with heavy-duty apparatus. They reduce stress to circuit components during clearing and minimize damage to protected components on short circuits.

• Current Limiting
• Can Carry Long Sustained Overloads Common with Heavy Duty Apparatus
• Protection of Heavy Traction and Electrochemical

Product Highlights

The MERSEN A60X100-4 fuse is UL Recognized and ideal for protection of rectifiers and other heavy-duty equipment.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: A60X100-4
• Country of Origin: Mexico

Technical Specifications

• Item number: A60X100-4
• Description: High Speed Fuse Amp-Trap A60X 600VAC 100A Bolted Blade
• EAN/UPC Code: 782001943301
• Rated voltage AC UL: 600 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 100 A
• AC or DC: AC
• Speed/Characteristic: High Speed
• Mounting: Bolted
• AC Max I.R./Breaking Capacity: I1: 200 kA
• Connection/Terminal Material: Tin-Plated Brass
• Connection/Terminal Type: Blade
• Product Diameter: 1 in
• Product Length: 4.41 in
• Product group: High-Speed and Semiconductor protection fuses
• Body/Insulating Material: GMG
• Product Weight: 0.25 lb
• Amps: 100
• Volts AC: 600
• Fuse Class: Semiconductor
• Speed: Very Fast Acting
• Size: 1" x 4.41"
• AC Interrupting Rating: 100,000 AIC
• Category: Circuit Protection
• Series: A60X
• Voltage Rating - AC: 600 VAC
• Response Time: Fast Blow
• Applications: Electrical, Industrial
• Packaging: Bulk
• Features: Indicating
• Part Status: Active
• Approval Agency: UR
• Mounting Type: Bolt Mount
• Breaking Capacity @ Rated Voltage: 200kA
• Fuse Type: Cartridge
• Package / Case: Cylindrical, Blade Terminal (Bolt)
• Current Rating (Amps): 100A
• Size / Dimension: 1.000" Dia x 2.909" L (25.40mm x 73.90mm)
• Brand: MERSEN
• Manufacturer Part Number: A60X100-4
• AC Voltage Rating: 600 V
• Body Material: Fiberglass
• Element: Single
• Fits Fuse Block Style: Non-Rejection
• Fuse Body Style: Bolt-On
• Fuse Diameter x Length: 1 in x 4-7/16 in
• Interrupt Rating - AC: 200 kA
• Overall Diameter: 1 in
• Overall Length: 4-7/16 in
• Standards: CE, UL Recognized, Guide JFHR2, File E60314
• Visual Indication: Non-Indicating
• UNSPSC: 39121612
• Model: A60X100-4
• Amperage Rating: 100
• Voltage: 600
• Catalog Number: A60X100-4
• Catalog / Class: Semiconductor
• SKU: A60X100-4
