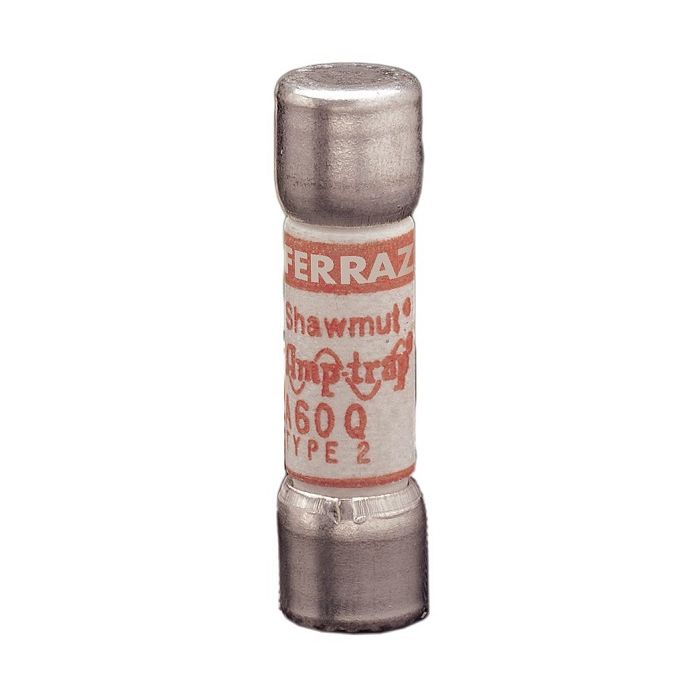

Mersen A60Q30-2 Amp-Trap Form 101 Semiconductor Protection Fuse, 600VAC/VDC, 30 Ampere

Product Description

The Mersen A60Q30-2 is an Amp-Trap Form 101 high-speed fuse with a 600V AC/DC rating. It is designed to protect semiconductors and offers excellent cycling ability. This fuse is ideal for inverters and small equipment requiring extremely fast response to faults, without the need to carry sustained heavy overloads.

• Features a 600V AC/DC rating
• Offers excellent cycling ability
• Provides extremely fast-acting protection

Product Highlights

The Mersen A60Q30-2 fuse is fast-acting and ideal for protecting semiconductors in inverters and other sensitive equipment.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: A60Q30-2

Technical Specifications

• Voltage: 600 Volts
• Specification Met: UL
• AC Adapter Current: 30 Amps
• Item number: A60Q30-2
• Rated voltage AC UL: 600 V
• Rated voltage DC UL: 600 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 30 A
• ROHS Compliant: Yes
• AC or DC: AC/DC
• Speed/Characteristic: High Speed
• Mounting: Clip
• AC Max I.R./Breaking Capacity: I1: 100 kA
• Connection/Terminal Material: Tin-Plated Copper
• Connection/Terminal Type: Ferrule
• Product Diameter: 0.41 in
• Product Length: 1.5 in
• Product group: High-Speed and Semiconductor protection fuses
• Body/Insulating Material: GMG
• AC Voltage Rating: 600
• DC Voltage Rating: 600
• AC Interrupting Rating: 200,000 AIC
• DC Interrupting Rating: 100,000 AIC
• Physical Size: 13/32" x 1 1/2"
• Amps: 30
• Voltage Rating - AC: 600 VAC
• Voltage Rating - DC: 600 VDC
• Series: A60Q Series
• Response Time: Fast Blow
• Applications: Electrical, Industrial
• Part Status: Active
• Approval Agency: UR
• Breaking Capacity @ Rated Voltage: 200kA AC, 100kA DC
• Fuse Type: Cartridge
• Package / Case: Cylindrical, Blade Terminals
• Current Rating (Amps): 30A
• Size / Dimension: 0.406" Dia x 1.500" L (10.30mm x 38.10mm)
• Alternate Mfr Part Number: E215859
• Brand: Mersen
• Current Rating: 30 A
• For Use With: Fuses
• Manufacturer Part Number: A60Q30-2
• Primary Type: Fuse
• Quantity: 100
• Speed: high speed sec
• Unit of Measure: EA
• Mounting Type: Through-Hole Mount
