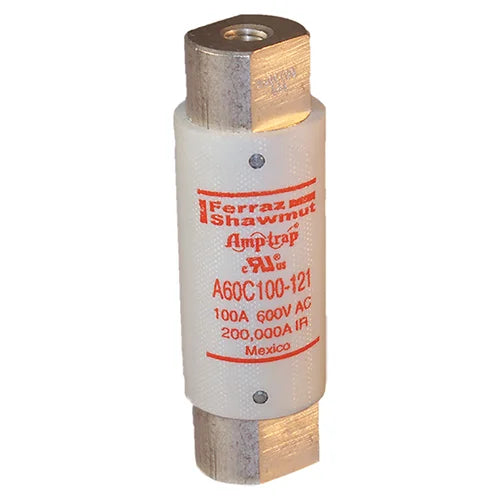

Mersen A60C100-121 Capacitor Fuse A60C 600VAC 100A Screw-in Amp-Trap

Product Description

The Mersen A60C100-121 low-voltage capacitor fuse provides advanced safety for power correction and harmonic filtering equipment. This capacitor fuse isolates a shorted capacitor to prevent damage to surrounding equipment or personnel. Mersen A60C fuses isolate shorted capacitors before case rupture occurs and withstand inrush current at startup.

• Provides advanced safety for power correction and harmonic filtering equipment
• Isolates a shorted capacitor before it can damage surrounding equipment or personnel
• Isolates the shorted capacitor before case rupture occurs while routinely withstanding inrush current at startup

Product Highlights

The Mersen A60C100-121 is a low-voltage capacitor fuse that provides safety for power correction and harmonic filtering equipment.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: A60C100-121

Technical Specifications

• Item number: A60C100-121
• Description: Capacitor fuse A60C 600VAC 100A Screw-in Amp-Trap
• EAN/UPC Code: 782001935719
• Rated voltage AC UL: 600 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 100 A
• AC or DC: AC
• Mounting: Direct Mount
• AC Max I.R./Breaking Capacity: I1: 200 kA
• Connection/Terminal Material: Silver-Plated Brass
• Connection/Terminal Type: Screw-in
• Product Diameter: 1.22 in
• Product Length: 3.82 in
• Product group: Special Purpose Fuses
• Body/Insulating Material: GMG
• UNSPSC Code: 39120000
• Alternate Mfr Part Number: Y212748
• Brand: Mersen
• Breaking Capacity: 200 kA
• Current Rating: 100 A
• For Use With: Fuses
• Manufacturer Part Number: A60C100-121
• Primary Type: Fuse
• Termination: Screw-In
• Type: Low voltage cylindrical fuse
• UPC Code: 0782001935719
• Voltage Rating: 600 V
• Manufacturer: Mersen
• SKU: MRSA60C100-121
• RoHS Compliant: Unkown
