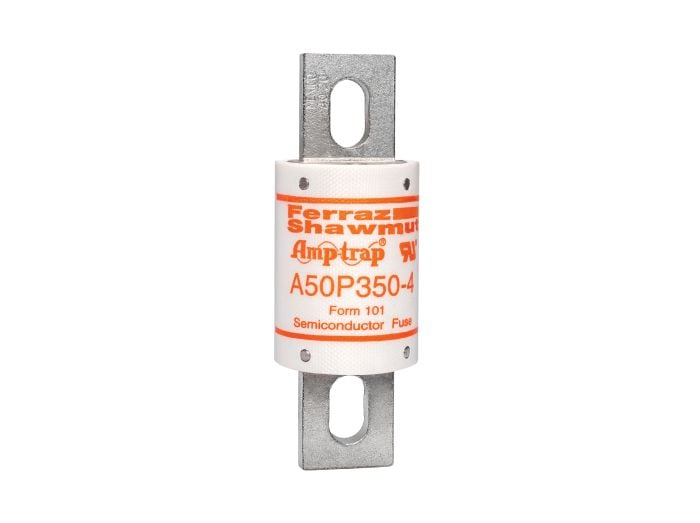

Mersen A50P350-4 High Speed Fuse Amp-Trap A50P 500VAC 450VDC 350A Blade

Product Description

The MERSEN A50P350-4 is a high-speed Amp-Trap fuse developed for DC drives and uninterruptible power supplies. It provides better protection and superior reliability. Typically used for replacement, this fuse reduces stress to circuit components during clearing. It is a UL-recognized component.

• Semiconductor Fuse
• Fast Acting
• Current Limiting

Product Highlights

High-speed fuse for DC drives and uninterruptible power supplies with superior reliability and reduced stress to circuit components.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: A50P350-4
• Country of Origin: United States

Technical Specifications

• Item number: A50P350-4
• Description: High Speed Fuse Amp-Trap A50P 500VAC 450VDC 350A Blade
• EAN/UPC Code: 782001946210
• Rated voltage AC UL: 500 V
• Rated voltage DC UL: 450 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 350 A
• AC or DC: AC/DC
• Speed/Characteristic: High Speed
• Mounting: Bolted
• AC Max I.R./Breaking Capacity: I1: 52 kA
• Connection/Terminal Material: Tin-Plated Brass
• Connection/Terminal Type: Blade
• Product Diameter: 1.5 in
• Product Length: 4.34 in
• Product group: High-Speed and Semiconductor protection fuses
• Body/Insulating Material: GMG
• Product Weight: 0.68 lb
• Amps: 350
• Volts AC / DC: 500
• Fuse Type: Cartridge
• Acting Type: Fast Acting
• Current Limiting: Yes
• AC Voltage Rating: 500
• DC Voltage Rating: 450
• AC Interrupting Rating: 100,000 AIC
• DC Interrupting Rating: 79,000 AIC
• UL Recognized Component: Yes
• AC: UL Guide No.: JFHR2 (10-800A)
• DC: UL Guide No.: JFHR2 (35-800A)
• UNSPSC Code: 39120000
• Alternate Mfr Part Number: X225696
• Brand: Mersen
• Breaking Capacity: 52 kA
• Current Rating: 350 A
• Manufacturer Part Number: A50P350-4
• Primary Type: Fuse
• Series: A50P Amp-Trap Series
• Type: High speed fuse
• Unit of Measure: EA
• AC Voltage: 500 VAC
• DC Voltage: 450 VDC
• Characteristic: Fast Acting
• Interrupt Rating: 100 kA @ 500 VAC, 79 kA @ 450 VDC
• Trip Indicator: No
• Alarm Contacts: No
• Net Weight: 0.63 lbs
• Gross Weight: 0.68 lbs
• Category: Circuit Protection
• Electrical, Specialty Fuses: Electrical, Specialty Fuses
• Voltage Rating - DC: 450 VDC
• Manufacturer: Mersen USA Newburyport-MA L.L.C.
• Response Time: Fast Blow
• Applications: Electrical, Industrial
• Packaging: Bulk
• Features: Indicating
• Part Status: Active
• Approval Agency: UR
• Mounting Type: Bolt Mount
• Breaking Capacity @ Rated Voltage: 100kA AC, 79kA DC
• Package / Case: Cylindrical, Blade Terminal (Bolt)
• Current Rating (Amps): 350A
• Size / Dimension: 1.500" Dia x 4.331" L (38.10mm x 110.00mm)
• Voltage Rating - AC: 500 VAC
• Amperage: 350 Amp
• For Protection of DC Drives, UPS and Other Equipment of 500 V or Less: For Protection of DC Drives, UPS and Other Equipment of 500 V or Less
• Connection Type: Blade
• Contact Material: Tin Plated Brass
• Insulation Material: GMG
• Max Operating Temperature: 80 degrees C
• Rated Voltage AC: 500 V
• Rated Voltage DC: 450 V
• TC Connection: Blade
• Terminal Material: Tin-Plated Brass
• Terminal Type: Blade
• Voltage: 500 Volt
• Sub Brand: Amp-Trap
• 12-Digit UPC: 782001946210
• Construction: GMG
• GTiN: 30782001946211
• Product UPC: 78200194621
