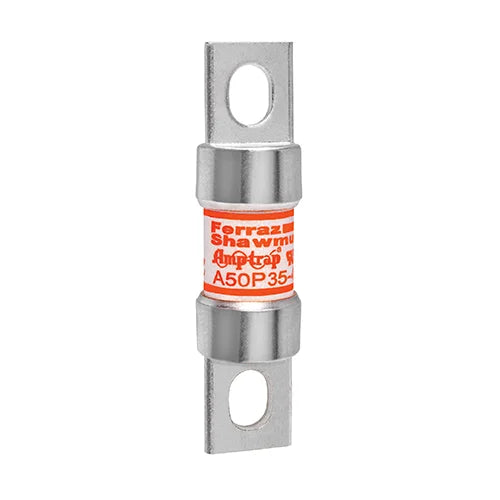

Mersen A50P35-4 High Speed Fuse Amp-Trap A50P 500VAC 450VDC 35A Blade

Product Description

The MERSEN A50P35-4 is a high-speed Amp-Trap® Form 101 fuse developed for DC drives and uninterruptible power supplies. It provides enhanced protection with a lower I2t and superior reliability. Typically used for replacement, this fuse minimizes damage to protected components on short circuits.

• Low I2t minimizes damage to protected components on short circuit.
• Controlled arc voltage reduces stress to circuit components during fuse clearing.
• Choice of mounting types helps in equipment design.

Product Highlights

The MERSEN A50P35-4 fuse offers reliable protection for DC drives, UPS, and similar equipment, ensuring minimal damage and stress during operation.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: A50P35-4

Technical Specifications

• Item number: A50P35-4
• Description: High Speed Fuse Amp-Trap A50P 500VAC 450VDC 35A Blade
• EAN/UPC Code: 782001945961
• Rated voltage AC UL: 500 V
• Rated voltage DC UL: 450 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 35 A
• AC or DC: AC/DC
• Speed/Characteristic: High Speed
• Mounting: Bolted
• AC Max I.R./Breaking Capacity: I1: 25 kA
• Connection/Terminal Material: Tin-Plated Copper
• Connection/Terminal Type: Blade
• Product Diameter: 0.81 in
• Product Length: 3.19 in
• Product group: High-Speed and Semiconductor protection fuses
• Body/Insulating Material: GMG
• Product Weight: 0.2 lb
• Brand / Manufacturer: MERSEN (FERRAZ SHAWMUT)
• Series: A50P
• Catalog Number: A50P35-4
• Catalog / Class: Semiconductor
• Speed: VERY FAST ACTING
• SKU: A50P35-4
• UNSPSC Code: 39120000
• Alternate Mfr Part Number: W202281
• Application: Protection of DC drives, UPS and other equipment of 500 volts or less
• Body Material: Glass
• Brand: Mersen
• Breaking Capacity: 25 kA
• Contact Material: Tin-plated Copper
• Current Rating: 35 A
• Manufacturer Part Number: A50P35-4
• Primary Type: Single Use Fuses
• Ampere: 35
• Volts AC / DC: 500
• Fuse Type: Semiconductor
• Acting: Fast Acting
• Current Limiting: Yes
• Physical Size: 0.81" x 2.25"
• AC Voltage Rating: 500
• DC Voltage Rating: 450
• AC Interrupting Rating: 100,000 AIC
• DC Interrupting Rating: 79,000 AIC
• Electrical, Specialty Fuses: Electrical, Specialty Fuses
• Voltage Rating - DC: 450 VDC
• Manufacturer: Mersen USA Newburyport-MA L.L.C.
• Response Time: Fast Blow
• Applications: Electrical, Industrial
• Packaging: Bulk
• Features: Indicating
• Part Status: Active
• Approval Agency: UR
• Mounting Type: Bolt Mount
• Breaking Capacity @ Rated Voltage: 100kA AC, 79kA DC
• Package / Case: Cylindrical, Blade Terminal (Bolt)
• Current Rating (Amps): 35A
• Size / Dimension: 0.811" Dia x 3.189" L (20.60mm x 81.00mm)
• Voltage Rating - AC: 500 VAC
• Standards: UL Recognized Component AC: UL Guide No. JFHR2 Some Ratings RoHS Compliant
• Termination: Bolted
• Type: Cylindrical Fuses
