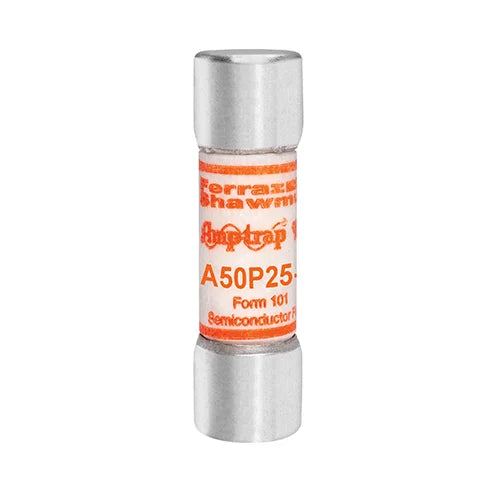

Mersen A50P25-1 High Speed Fuse Amp-Trap 500VAC 450VDC 25A Ferrule

Product Description

The MERSEN A50P25-1 is a high-speed Amp-Trap Form 101 fuse developed for DC drives, uninterruptible power supplies, and similar applications requiring better protection and superior reliability. It is rated for 500VAC and 450VDC with a 25A ferrule connection and is typically used for replacement.

• High Speed
• 500VAC 450VDC
• 25A Ferrule

Product Highlights

High-speed fuse for DC drives and uninterruptible power supplies, providing superior reliability and protection.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: A50P25-1

Technical Specifications

• Item number: A50P25-1
• Description: High Speed Fuse Amp-Trap A50P 500VAC 450VDC 25A Ferrule
• EAN/UPC Code: 782001948146
• Rated voltage AC UL: 500 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 25 A
• AC or DC: AC
• Speed/Characteristic: High Speed
• Mounting: Clip
• AC Max I.R./Breaking Capacity: I1: 50 kA
• Connection/Terminal Material: Tin-Plated Copper
• Connection/Terminal Type: Ferrule
• Product Diameter: 0.56 in
• Product Length: 2 in
• Product group: High-Speed and Semiconductor protection fuses
• Body/Insulating Material: GMG
• Volts: 500
• Application: Semiconductor
• Fuse Class: A50P
• Voltage AC: 500
• Voltage DC: 450
• Interrupting Rating AC: 100,000 AIC
• Interrupting Rating DC: 79,000 AIC
• Ampere: 25 A
• Interrupt rating: 50 kA
• Speed: Very Fast Acting sec
• Class: Semiconductor
• Shape: Cartridge Fuses
• Approvals: UL
• Dimensions: 0.56" Dia x 2" L (14.22x50.8mm)
• Other names: A50P25, A50P 25 Amp, A50P 25A, A50P-25-1, A50P-25
• UNSPSC Code: 39120000
• Alternate Mfr Part Number: G219978
• Body Material: Glass
• Brand: Mersen
• Breaking Capacity: 50 kA
• Contact Material: Tin-plated Copper
• Current Rating: 25 A
• Manufacturer Part Number: A50P25-1
• Primary Type: Single Use Fuses
• Series: Amp-Trap A50P Series
• Standards: UL Recognized Component AC: UL Guide No. JFHR2 Some Ratings RoHS Compliant
• Termination: Cartridge
• Type: Semiconductor Fuses
• UPC Code: 0782001948146
