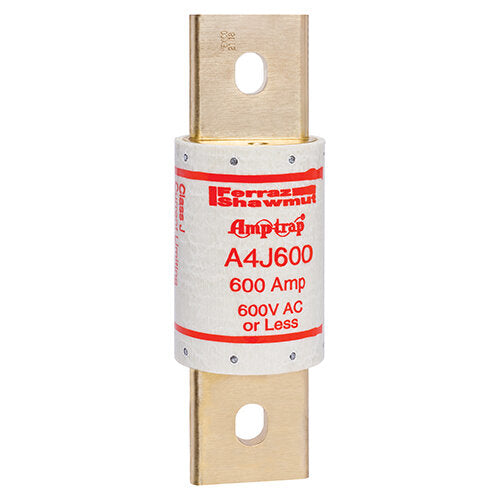

Mersen A4J600 600V 600A Class J Fuse 8 in L x 2.5 in D

Product Description

The MERSEN A4J600 is a fast-acting, current-limiting Class J fuse designed for robust circuit protection. This 600A, 600VAC/300VDC fuse provides excellent current limiting capabilities for diverse applications, including capacitors, panelboards, and feeder circuits. Its unique dimensions prevent incorrect substitution with fuses of lower voltage or interrupting ratings. Featuring a cylindrical polyester body and blade terminals, it ensures reliable performance in industrial environments.

• High current limitation for low peak let-thru current.
• Unique dimensions prevent incorrect substitution by other fuse classes.
• Fiberglass body provides dimensional stability in harsh industrial environments.

Product Highlights

Fast-acting, current-limiting Class J fuse with unique dimensions for enhanced protection.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: A4J600
• Country of Origin: Mexico

Technical Specifications

• Type: Fuse
• Fuse Type: Low Voltage
• UNSPSC Code: 39121600
• Series: A4J
• Fuse Class: J
• Rejection Type: Rejection
• Amperage Rating: 600 A
• Voltage Rating: 600 VAC/300 VDC
• Interrupt Rating: 200 kA AC / 100 kA DC
• Terminal Type: Blade
• Mounting Type: Clip
• Body Type: Cylindrical
• Body Material: Polyester
• Standards: RoHS Compliant, UL 248-8, UL File E2137, CSA C22.2 No. 248.8, IEC 269-2-1
• Application: Capacitors, Load centers, Panelboards, Switchboards, Bus Duct, Feeder Circuits, Circuit Breakers, Lighting, Heating, General Loads
• Sub Brand: Amp-Trap
• Country of Origin: Mexico
• Made in USA: No
• UPC: 782001960537
• GTIN: 00782001960537
• Speed: Fast Acting
• Connection Material: Brass Alloy
• Frequency: 50/60 Hz
• Product Group: Low Voltage UL/CSA Fuses
