Product Description

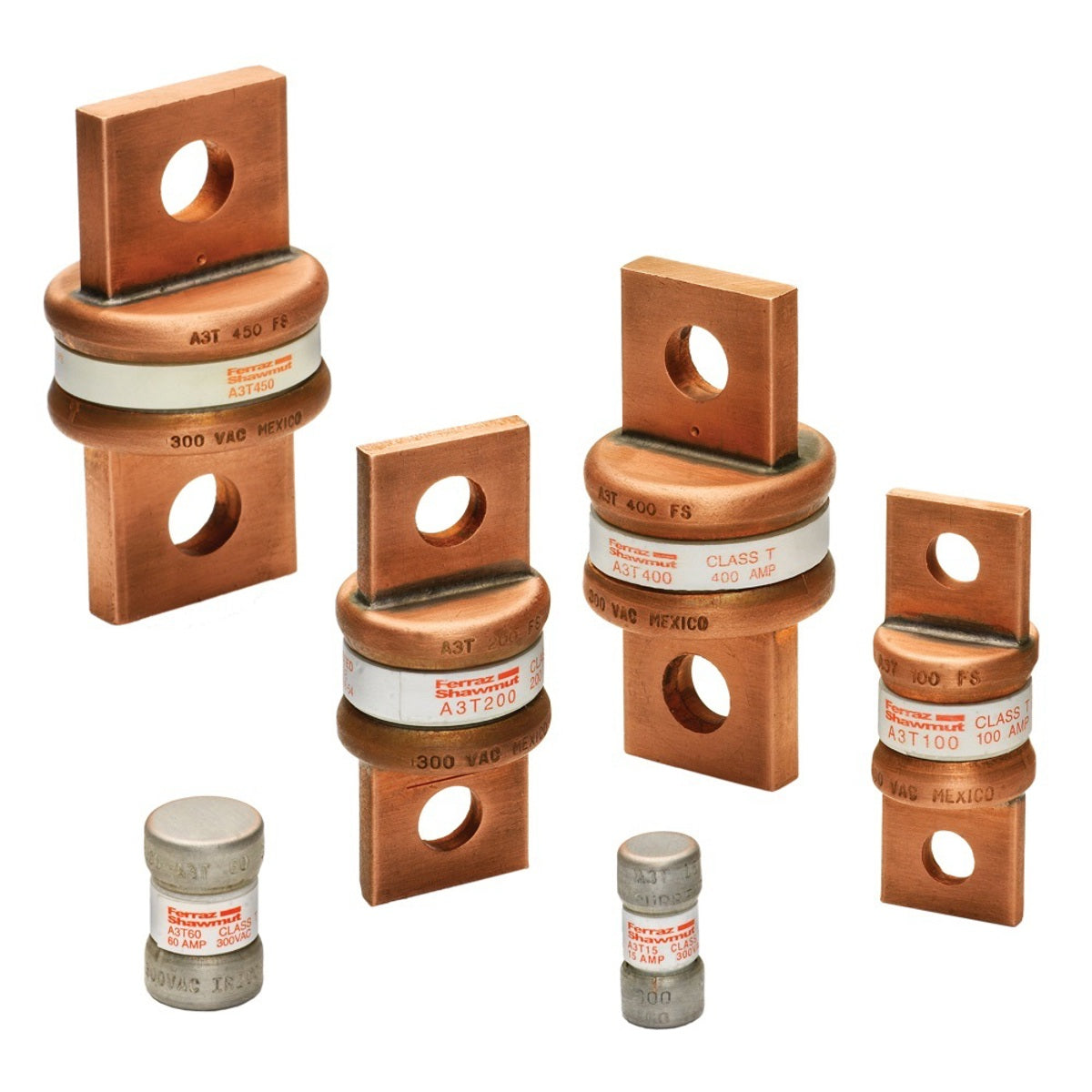

The Mersen A3T800 is a fast-acting class T fuse with a voltage rating of three hundred volts alternating current and one hundred sixty volts direct current. This fuse has an amperage rating of eight hundred amps and is designed for maximum performance in critical applications.
- Fast-acting design for immediate response in overload situations
- UL listed and CSA certified for safety and reliability
- Blade connection type for easy installation
Product Highlights
This fuse effectively protects load centers, panelboards, switchboards, and circuit breakers. Its sturdy design provides reliable operation in demanding environments.
Product Information
Standard Information
-
Brand: Mersen
-
Manufacturer Part Number: A3T800
Technical Specifications
-
Amperage Rating: 800 A
-
Voltage Rating: 300 VAC, 160 VDC
-
Interrupt Rating: 200 KA
-
Mounting Type: Blade
-
Catalog Number: A3T800
-
Country of Origin: Mexico
-
Application: Load centers, panelboards, switchboards, circuit breakers
-
Standard: UL listed to standard 248-15, CSA certified to standard C22.2 No. 248.15
