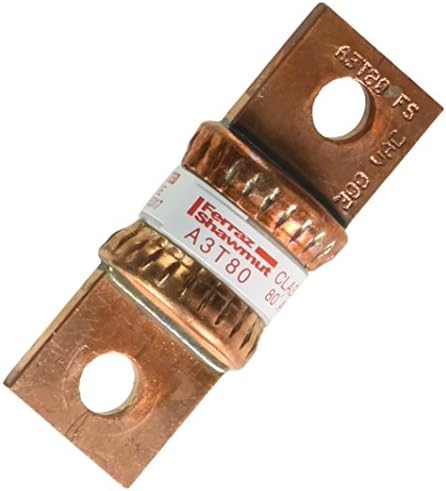

Mersen A3T80 Amp-Trap A3T80 Current Limiting Low Voltage Fast Acting Fuse 80 A

Product Description

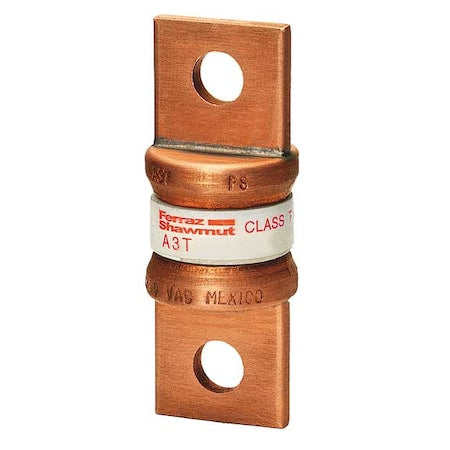

The MERSEN A3T80 Amp-Trap® Class T fuse offers high current limitation and fast-acting protection in a compact size. Its unique dimensions prevent the use of fuses with lower voltage or current-limiting capabilities. The fuse features a glass melamine body for dimensional stability and stamped catalog numbers for permanent identification. It is suitable for load centers, panelboards, switchboards, circuit breakers and metering centers.

• Extremely current-limiting for low peak let-thru current
• Unique dimensions prevent replacement by other fuse classes
• Blade-stamped catalog numbers for permanent identification

Product Highlights

This Mersen A3T fuse provides reliable, fast-acting protection with a high interrupt rating and a space-saving design.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: A3T80
• Country of Origin: Mexico

Technical Specifications

• Type: Current Limiting
• Terminal Type: Blade
• Class: T
• Mounting Type: Bolt-On
• Element: Single
• Material: GMG
• Interrupt Rating: 200/50 kA
• Body Style: Cylindrical
• Amperage Rating: 80 A
• Series: A3T
• Voltage Rating: 300 VAC/160 VDC
• UNSPSC: 39121606
• Vendor SKU: A3T80
• UPC: 782001890162
• Application: Load centers, Panelboards, Switchboards, Circuit Breakers and Metering Centers
• Standard & Approvals: UL 248-15 File E2137, DC UL 248 Listed, CSA C22.2 No. 248.15 Certified, RoHS Compliant
• Manufacturer: Mersen
• Brand: Mersen
• Speed: Very Fast Acting
• Mounting: Bolted
• Fuse Amps: 80A
• Standards: UL/CSA
• Body Material: Glass/Melamine
• Fuse Speed: Very Fast Acting
• Fuse Holder Code: BB
• AC Voltage Rating: 300V AC
• DC Voltage Rating: 160V DC
• Equivalent Series: A3T, JJN, JLLN, TJN
• Visual Indication: Nonindicating
• Connection Material: Copper
• Fuse Voltage Rating: 300VAC/160VDC
• Fits Fuse Block Style: Nonrejection
• Functionally Equal To: Bussmann JJN, Edison TJN, Littelfuse JLLN
• Fuse Interrupt Rating: 200kA at 300VAC, 50kA at 160VDC
• Rejection / Nonrejection: Nonrejection
• Indicating / Nonindicating: Nonindicating
• Equivalent Brand and Series: Bussmann JJN, Edison TJN, Littelfuse JLLN, Mersen A3T
• Compatible Fuse Block Series: 3TFB, 6TFB
• Green Environmental Attribute: RoHS 2011/65/EU Compliant
• Voltage: 160 Volts
