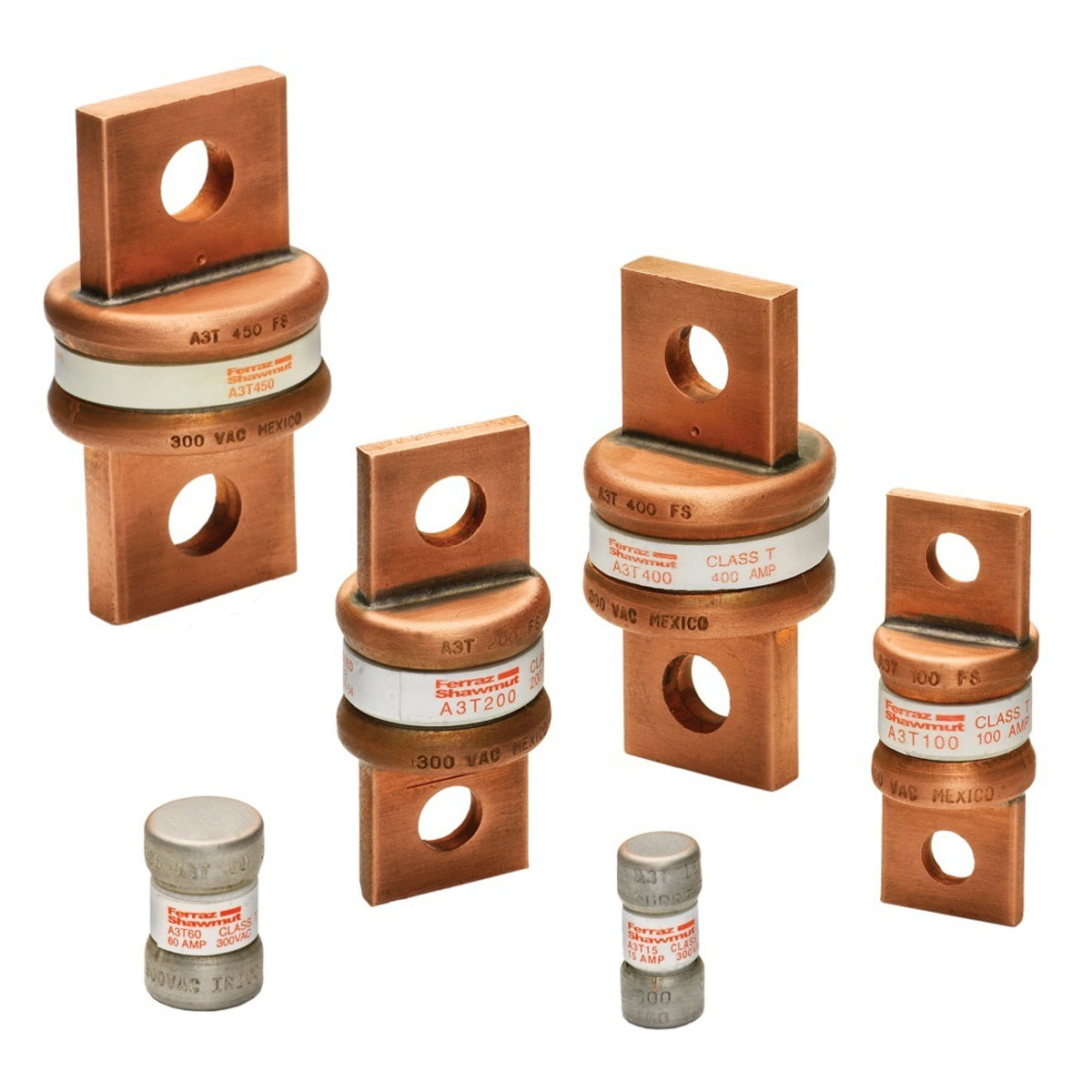

Mersen A3T600 Fuse A3T - Class T - Fast-Acting 300VAC 160VDC 600A Blade

Product Description

The Mersen A3T600 is a Class T fast-acting fuse designed for use in various electrical applications. This fuse operates at a voltage rating of three hundred volts alternating current and one hundred sixty volts direct current, with an amperage rating of six hundred amps.

• Extremely current-limiting for low peak let-thru current.
• UL listed to standard 248-15 and CSA certified to standard C22.2 no. 248.15.
• Blade connection and bolt mounting type for easy installation.

Product Highlights

This Class T fuse is built for reliable protection in load centers, panelboards, switchboards, and circuit breakers. It features unique dimensions to prevent compatibility with other fuse classes and is designed for applications requiring high interrupt ratings.

Product Information

Standard Information

• Manufacturer: Mersen
• UPC: 782001890315

Technical Specifications

• Catalog Number: A3T600
• Amperage Rating: 600
• Voltage Rating: 300
• Interrupt Rating: 200 KA
• Mounting: Bolt
• Connection: Blade
• Size: 3.06 x 1.62 inches
• Country of Origin: Mexico
