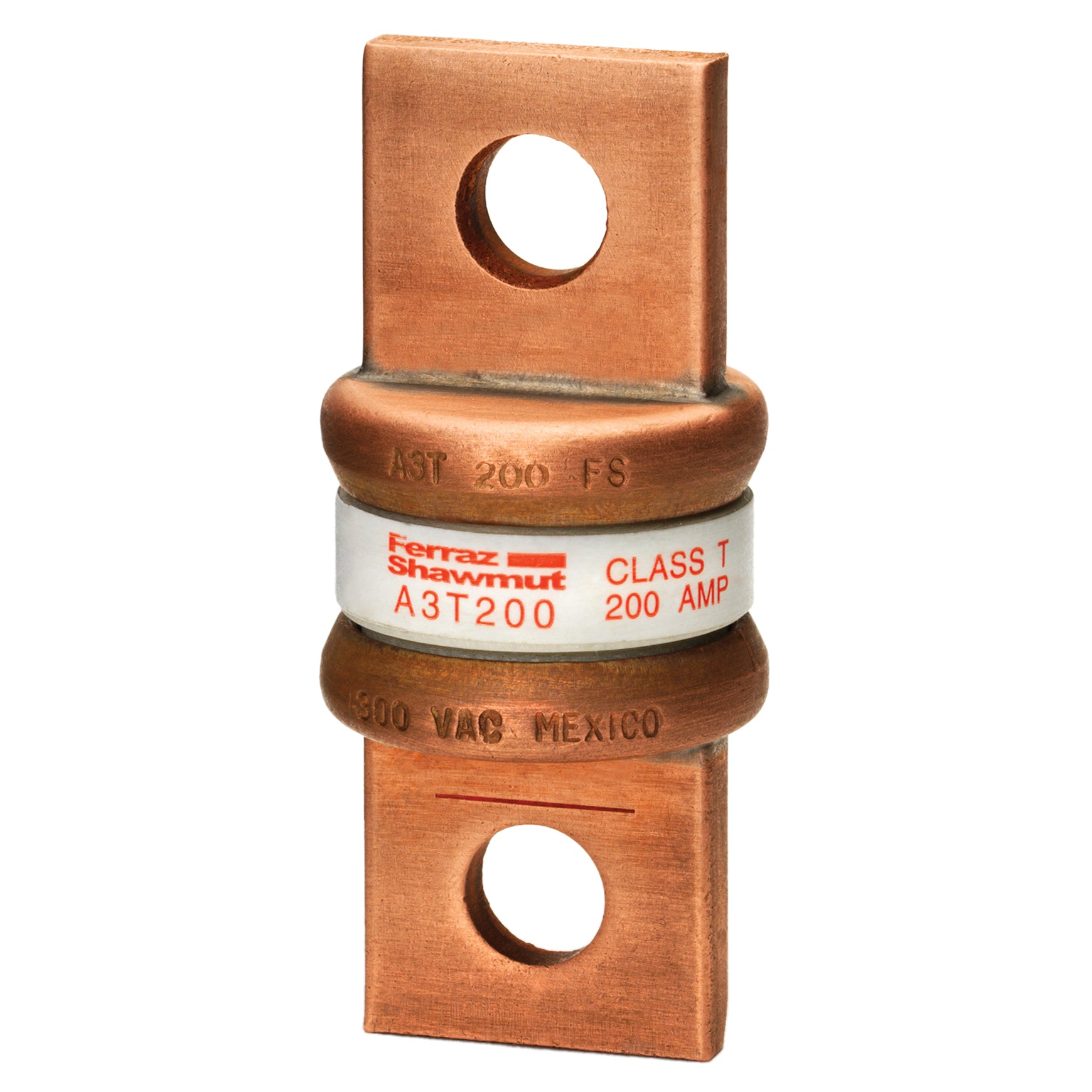

Mersen A3T200 Fuse A3T - Class T - Fast-Acting 300VAC 160VDC 200A Blade

Product Description

The Mersen A3T200 is a Class T, fast-acting fuse with a 300VAC and 160VDC voltage rating and a 200A amperage rating. This Amp-Trap fuse is extremely current-limiting for low peak let-thru current. It is designed with unique dimensions to prevent replacement by other fuse classes and has blade-stamped catalog numbers for permanent identification.

• Extremely current-limiting for low peak let-thru current
• Unique dimensions prevent replacement by other fuse classes
• Blade-stamped catalog numbers for permanent identification

Product Highlights

Fast-acting Class T fuse with high current limitation and a small physical size. Features glass melamine bodies for superior dimensional stability.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: A3T200
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: A3T200
• Manufacturer: Mersen
• Brand: Mersen
• Sub Brand: Amp-Trap®
• Country of Origin: Mexico
• Made in USA: No
• Amperage Rating: 200 A
• Application: Load centers Panelboards Switchboards Circuit breakers Metering centers
• Connection: Blade
• Interrupt Rating: 200 kA
• Mounting: Bolt
• Special Features: Extremely current-limiting for low peak let-thru current Unique dimensions prevent replacement by other fuse classes Blade-stamped catalog numbers for permanent identification Small physical size for greater design flexibility
• Standard: UL listed to standard 248-15 File E2137 CSA certified to standard C22.2 no. 248.15 DC listed to UL standard 248
• UPC: 782001890230
• GTIN: 00782001890230
• Item Type: Class T
• Voltage Rating: 300 VAC/160 VDC
• Type: Fast Acting
• Series: A3T
• Terminal Type: Blade
• Element: Single
• Material: GMG
• Body Style: Cylindrical
• Class: Class T
• AC Voltage: 300 VAC
• DC Voltage: 160 VDC
• Characteristic: Fast Acting
• Trip Indicator: No
• Alarm Contacts: No
• Package Type: Center Bolted
• Approvals: CE, CSA, UL
• Response Time: Fast-Acting
