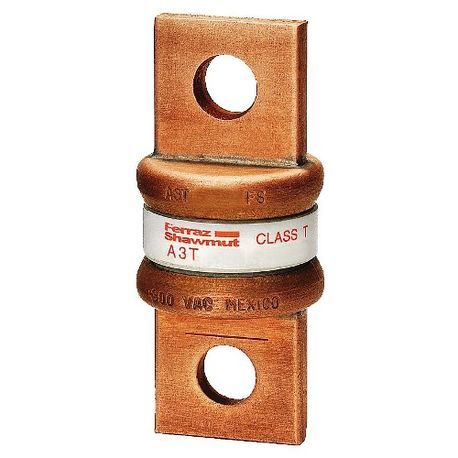

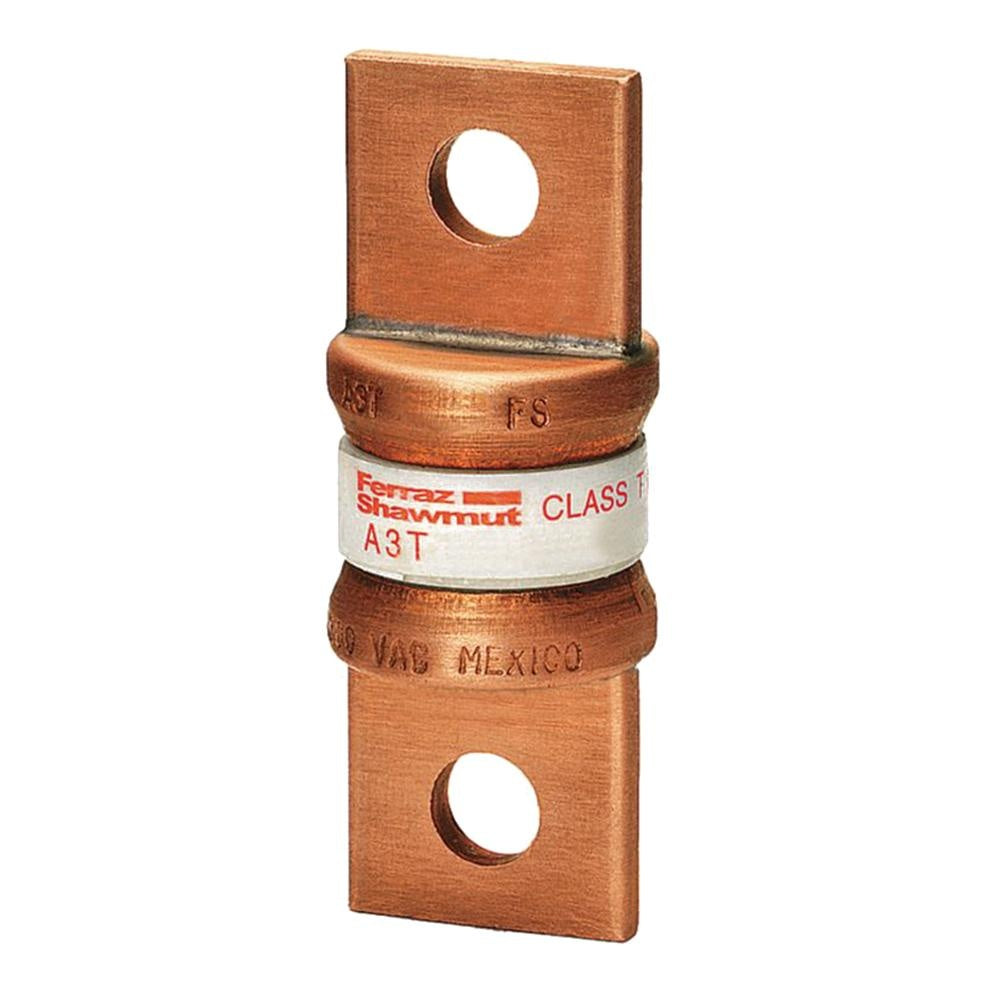

Mersen A3T100 Fuse A3T - Class T - Fast-Acting 300VAC 160VDC 100A Blade

Product Description

The MERSEN A3T100 is a fast-acting Class T fuse with a blade connection. This Amp-Trap® fuse is rated for 300VAC and 160VDC with a 100A amperage rating. It is designed for use in load centers, panelboards, switchboards, circuit breakers and metering centers. Its unique dimensions prevent replacement by other fuse classes.

• Extremely current-limiting for low peak let-thru current
• Unique dimensions prevent replacement by other fuse classes
• Blade-stamped catalog numbers for permanent identification

Product Highlights

The MERSEN A3T100 fuse offers a compact design with high current limitation and permanent identification.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: A3T100
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: A3T100
• Manufacturer: Mersen
• Brand: Mersen
• Sub Brand: Amp-Trap®
• Country of Origin: Mexico
• Made in USA: No
• Amperage Rating: 100 A
• Application: Load centers Panelboards Switchboards Circuit breakers Metering centers
• Connection: Blade
• Interrupt Rating: 200/50 kA
• Mounting: Bolt
• Special Features: Extremely current-limiting for low peak let-thru current Unique dimensions prevent replacement by other fuse classes Blade-stamped catalog numbers for permanent identification Small physical size for greater design flexibility
• Standard: UL listed to standard 248-15 File E2137 CSA certified to standard C22.2 no. 248.15 DC listed to UL standard 248
• UPC: 782001890186
• GTIN: 00782001890186
• Item Type: Class T
• Voltage Rating: 300 VAC/160 VDC
• Product Type: FUSE
• Class: T
• Voltage: 300 Vac / 160 Vdc
• Amperage: 100 Amps
• Interrupting Rating: 200kA I.R. AC, 50kA I.R. DC
• Series: A3T
• Element: Single
• Type: Fast Acting
• Body Style: Cylindrical
• Material: GMG
• Mounting Type: Clip
• Terminal Type: Blade
• Vendor SKU: A3T100
• UNSPSC: 39121606
• Standard & Approvals: UL 248-15 File E2137, DC UL 248 Listed, CSA C22.2 No. 248.15 Certified, RoHS Compliant
• Terminal Connection: Blade
• Indication: Non-Indicating
• Standards: UL 248-15 E2137 Listed, CSA C22.2, No.248.15 Certified, RoHS Compliant
• RoHS Flag: Yes
• Energy Star Flag: No
• Fuse Class: T
• Item Name: Fast Acting Fuse
• Manufacturer Name: Mersen
• Manufacturer Part Number: A3T100
• Alternate Mfr Part Number: R217319
• Current Rating: 100 A
• Numeric ID: 2510416
• Primary Type: Single Use Fuses
• Speed: Fast Acting sec
• Contact Material: Copper
• Construction: GMG Body
