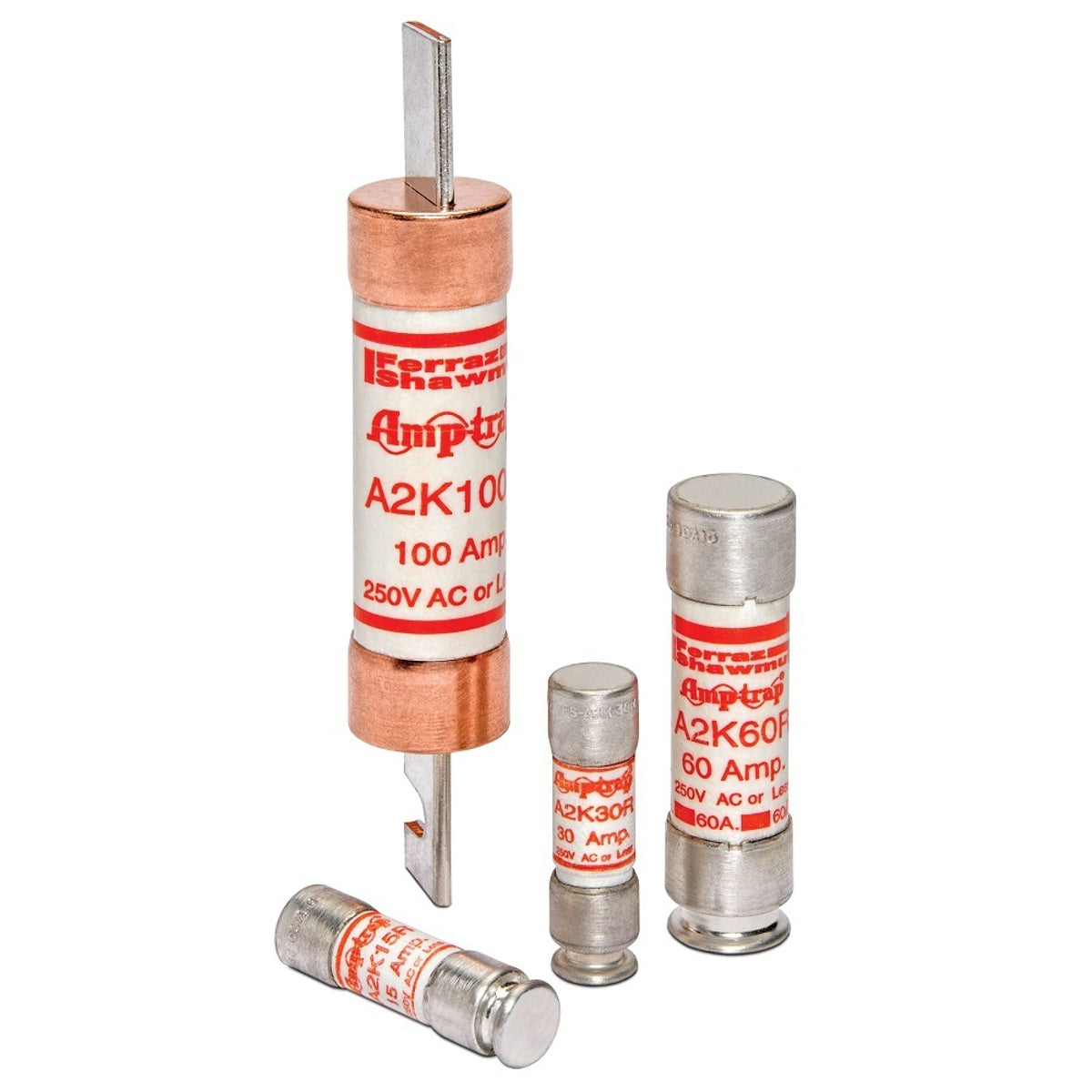

Mersen A2K100R Fuse A2K-R - Class RK1 - Fast-Acting 250VAC 250VDC 100A Blade

Product Description

Mersen A2K100R is a class RK1 fast-acting fuse designed for use in various electrical applications. It operates at a voltage of 250VAC and 250VDC with a current rating of 100A. This fuse is suitable for load centers, panelboards, switchboards, bus ducts, feeder circuits, non-inductive loads, and lighting circuits.

• Designed for fast-acting response.
• Rated for 250V AC and DC.
• Provides high interrupting capacity of 200 KA.

Product Highlights

The A2K100R features a rejection style design to prevent replacement by other fuse classes and has a fiberglass body for stability in harsh conditions. It includes an easy-to-read imprint label for quick identification and replacement, making it ideal for trade professionals.

Product Information

Standard Information

• Catalog Number: A2K100R
• Manufacturer: Mersen

Technical Specifications

• Amperage Rating: 100 A
• Voltage Rating: 250 VAC
• Interrupt Rating: 200 KA
• Mounting: Clip
• Application: Load centers, panelboards, switchboards, bus ducts, feeder circuits
• Body Type: Fiberglass
• Fuse Type: Fast Acting / Current Limiting
• UL Approval: Standard 248-12
