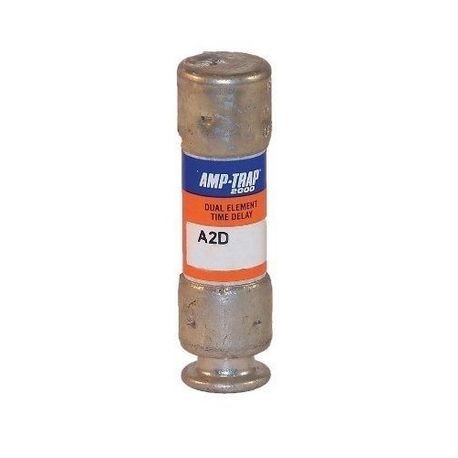

Mersen A2D3-2/10R FER Current Limiting Low Voltage North American Time Delay Fuse 3.2 A 250 VAC

Product Description

The Mersen A2D3-2/10R is a current limiting low voltage time delay fuse designed for North American use. This fuse can handle a maximum current of 3.2 A and operates at a voltage rating of 250 VAC. Its primary function is to protect electrical circuits by limiting the current during faults, preventing damage to equipment.

• Indicating and rejection style design to prevent incorrect replacements.
• Time delay characteristic for motor starting and transformer inrush currents.
• High interrupt rating of 200 kA.

Product Highlights

This fuse provides IEC type-2 protection against damage for mains and branch circuits, ensuring safety in both motor and non-motor applications.

Product Information

Standard Information

• Brand: Mersen
• MPN: A2D3-2/10R

Technical Specifications

• Amperage Rating: 3.2 A
• Voltage Rating: 250 VAC
• Interrupt Rating: 200 kA
• Body Size: 9/16 in Dia x 2 in L
• Mounting Type: Clip
• Terminal Type: Ferrule
• Material: Fiberglass
• Class: RK1
