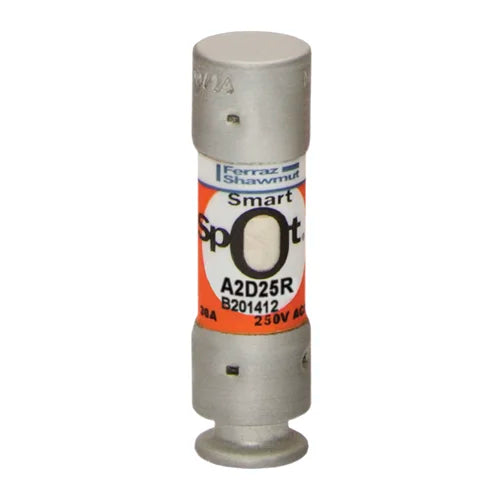

Mersen A2D25R amp-trap® 2000 smartspot® power fuse 25 a replacement a2d25r

Product Description

The Mersen A2D25R AMP-TRAP® 2000 SmartSpot® Power Fuse is a current limiting, time delay fuse with a 25 A amperage rating and a 250 VAC voltage rating. This Class RK1 fuse is designed for use in motors, safety switches, transformers, disconnects, control panels and all general purpose circuits. It offers IEC Type 2 "no damage" protection.

• Current Limiting
• Time Delay
• Cylindrical Body Style

Product Highlights

The Mersen A2D25R fuse provides short circuit protection and time-delay for motor in-rush currents. It can replace older 250V Class H, K or RK5 fuses.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: A2D25R
• Country of Origin: Mexico

Technical Specifications

• Interrupt Rating: 200/100 kA
• Class: RK1
• Body Style: Cylindrical
• Mounting Type: Holder
• Element: Dual
• Type: Current Limiting
• Voltage Rating: 250 VAC
• Amperage Rating: 25 A
• Series: A2D-R
• Terminal Type: Ferrule
• Application: Motors, Safety Switches, Transformers, Disconnects, Control Panels and All General Purpose Circuits
• AC Voltage Rating: 250V AC
• DC Voltage Rating: 250V DC
• Speed: Time Delay
• Standards: CSA C22.2 No. 248.12, DC UL 248, UL 248-12 File E2137
• Connection Type: Ferrule
• Fuse Interrupt Rating: 200kA at 250VAC, 100kA at 250VDC
• Equivalent Brand and Series: Bussmann LPN-RK-SPI, Littelfuse LLNRK-ID, Mersen A2D-R
• Compatible Fuse Block Series: 2HKRFB
• Green Environmental Attribute: RoHS 2011/65/EU Compliant
• Rated voltage AC UL: 250 V
• Rated voltage DC UL: 250 V
• Frequency (Hz): 50/60 Hz
• AC Max I.R./Breaking Capacity: I1: 200 kA
• Indication System: Yes
• Indication System Type: SmartSpot®
• Connection/Terminal Material: Tin-Plated Copper
• Product Diameter: 0.56 in
• Product Length: 2 in
• Product Weight: 0.037 lb
