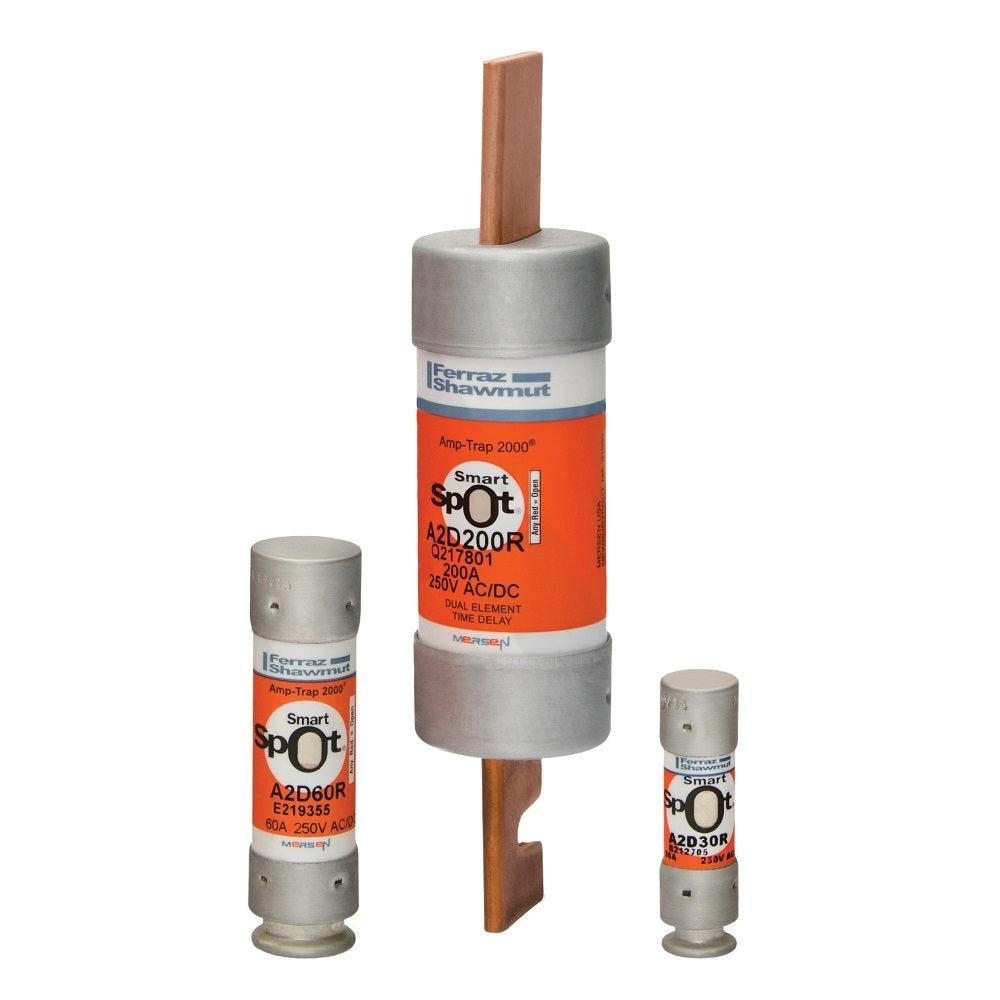

Mersen A2D200R Fuse A2D-R - Class RK1 - Time-Delay 250VAC 250VDC 200A Blade SmartSpot

Product Description

The Mersen A2D200R is a time-delay fuse designed for circuit protection. It is rated for 250 volts AC/DC and offers a 200 ampere capacity. This fuse is suitable for various applications including motors, safety switches, transformers, and general-purpose circuits.

• Voltage Rating: 250V AC/DC
• Interrupt Rating: 200 KA
• Amperage Rating: 200 Amps

Product Highlights

The A2D200R fuse delivers reliable performance with a time-delay feature to accommodate motor inrush currents. The SmartSpot indicator provides a visual indication of a blown fuse.

Product Information

Standard Information

• Manufacturer: Mersen
• Catalog Number: A2D200R

Technical Specifications

• Type: Class RK1
• Connection Type: Blade
• Size: 7.13 inches by 1.56 inches
• Special Features: Time-delay for motor starting, non-indicating SmartSpot visual blown fuse indicator
• Country of Origin: Mexico
• Application: Motors, safety switches, transformers, electrical panels
• Mounting: Clip
