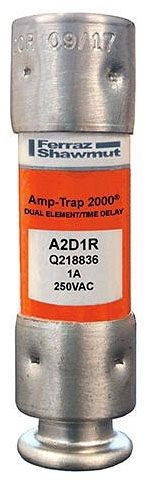

Mersen A2D1R Fuse A2D-R - Class RK1 - Time-Delay 250VAC 250VDC 1A Ferrule

Product Description

The Mersen A2D1R is a Class RK1 time-delay fuse designed to protect electrical circuits. Its compact design allows for use in a variety of applications including motors, safety switches, and transformers. The fuse operates at a voltage of two hundred fifty volts AC/DC and has a one ampere current rating.

• Time-delay performance to prevent nuisance opening during motor starts.
• Ferrule connection type for easy installation.
• Interrupt rating of two hundred kiloamps for high overload protection.

Product Highlights

The A2D1R fuse is ideal for general-purpose circuit protection and is suitable for both industrial and commercial applications.

Product Information

Standard Information

• Catalog Number: A2D1R
• Manufacturer: Mersen

Technical Specifications

• Amperage Rating: 1 Amp
• Voltage Rating: 250 Volts AC/DC
• Interrupt Rating: 200 Kiloamps
• Size: 2 x 0.56 Inches
• Connection Type: Ferrule
• Mounting Type: Clip
• Special Features: Non-indicating, SmartSpot visual blown fuse indicator, dual rated for 600VAC and 600VDC, highly current-limiting design.
