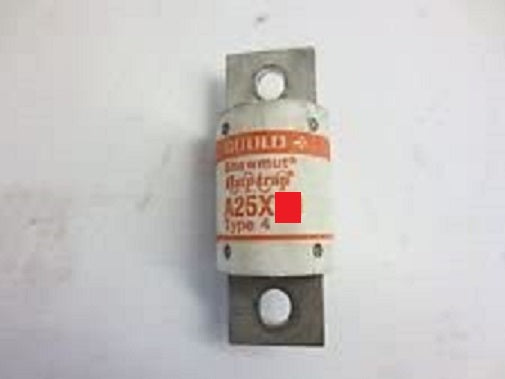

Mersen A25X80-4 AMP-TRAP® Semiconductor Fuse 80 A

Product Description

The Mersen A25X80-4 AMP-TRAP® Form 101 series semiconductor protection fuse is designed for heavy-duty rectifiers used in industries like electro-chemical processing. Originally for diode protection, these current limiting fast-acting fuses are reliable in various heavy-duty applications.

• Low l²t minimizes damage to protected components on short circuit
• Controlled arc voltage reduces stress to circuit components during fuse clearing
• Choice of mounting types helps in equipment design

Product Highlights

The Mersen A25X80-4 fuse provides reliable protection for power semiconductors with its fast-acting design and robust construction.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: A25X80-4
• Country of Origin: India

Technical Specifications

• Interrupt Rating: 10.6 kA
• Mounting Type: Bolt-On
• Amperage Rating: 80 A
• Body Size: 1.22 in Dia x 3.13 in L
• Series: A25X
• Terminal Type: Blade
• Type: Current Limiting Fast Acting
• Voltage Rating: 250 VAC
• Application: For protection of power semiconductors such as diodes, phase control SCR's and other power semiconductor devices
• Standard & Approvals: UL Guide No. JFHR2, RoHS Compliant
• Brand: Mersen
• Manufacturer Part Number: A25X80-4
• Speed: Very Fast Acting
