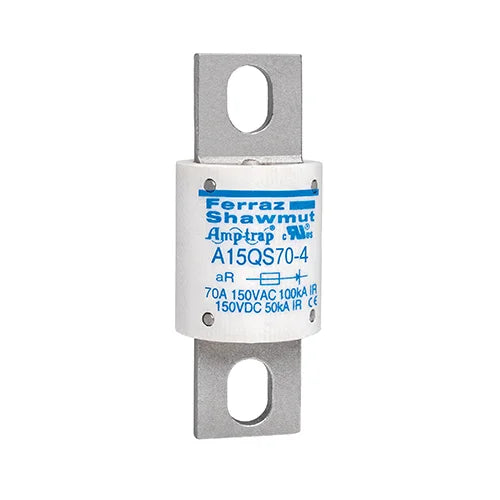

Mersen A15QS70-4 High Speed Fuse Amp-Trap A15QS 150VAC 150VDC 70A Blade

Product Description

The MERSEN A15QS70-4 is a high-speed Amp-Trap fuse designed for protecting diodes and other semiconductor devices rated at 150VAC/DC. Its compact design is suitable for applications with limited space. This fuse is fast-acting and current limiting, equivalent to Buss FWA style. It is ideal for protecting heavy-duty devices such as electrochemical rectifiers.

• Designed for the protection of diodes and other semiconductor devices
• Equivalent to Bussmann FWA Style
• UL Recognized Component

Product Highlights

High-speed fuse for semiconductor protection with a compact design and fast-acting performance.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: A15QS70-4
• Country of Origin: MX

Technical Specifications

• Item number: A15QS70-4
• Description: High Speed Fuse Amp-Trap ® A15QS 150VAC 150VDC 70A Blade
• EAN/UPC Code: 782001288211
• Rated voltage AC UL: 150 V
• Rated voltage DC UL: 150 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 70 A
• ROHS Compliant: Yes
• AC or DC: AC/DC
• Speed/Characteristic: High Speed
• Mounting: Bolted
• AC Max I.R./Breaking Capacity: I1: 200 kA
• Connection/Terminal Material: Tin-Plated Brass
• Connection/Terminal Type: Blade
• Product Diameter: 1.13 in
• Product Length: 2.66 in
• Product group: High-Speed and Semiconductor protection fuses
• Body/Insulating Material: GMG
• Product Weight: 0.17 lb
• Voltage rating: 150VAC
• Interrupt rating: 100kA
• Speed: Fast Acting
• Class: Semiconductor
• Shape: Bolt-On
• Approvals: UL
• Substitute parts: Bussmann FWA
• Dimensions: 1.13" Dia x 2.66" L (28.7x67.56mm)
• Amps: 70
• Volts: 150
• Application: Semiconductor
• Product Family: A15QS
• Series: A15QS
• Terminal Style: Bolt-Down
• Body Style: Blade
• Interruption Rating: 100kA at 150VAC/DC
• Category: Circuit Protection
• Voltage Rating - DC: 150 VDC
• Response Time: Fast Blow
• Applications: Electrical, Industrial
• Packaging: Bulk
• Features: Indicating
• Approval Agency: UR
• Mounting Type: Bolted
• Breaking Capacity @ Rated Voltage: 100kA AC, 50kA DC
• Fuse Type: Cartridge
• Package / Case: Cylindrical, Blade Terminal (Bolt)
• Current Rating (Amps): 70A
• Size / Dimension: 1.000" Dia x 2.661" L (25.40mm x 67.60mm)
• Voltage Rating - AC: 150 VAC
• Brand: Mersen
• Body Size: 1 in Dia x 2.66 in L
• Body Type: Cylindrical/Round
• Country of Origin: MX
• Interrupt Rating: 50/100 kA
• Manufacturer Name: MERSEN
• Material: Ceramic/GMG
• Rejection/Non-Rejection: Non-Rejection
• Type: Current Limiting Fast Acting Round Style Semi-Conductor
• Voltage Rating: 150 V AC, 150 VAC
