Mersen A15QS500-4 High Speed Fuse Amp-Trap 150VAC 150VDC 500A Blade

Product Description

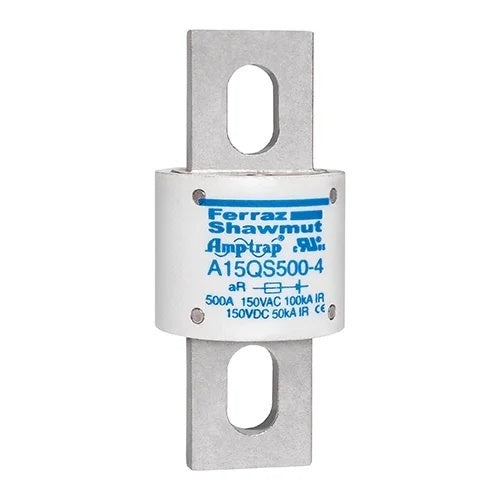

The Mersen A15QS500-4 is a high-speed Amp-Trap fuse designed for the protection of heavy-duty devices such as electrochemical rectifiers and semiconductor devices. This fuse is rated for 150VAC/DC and 500A. It features a blade connection and bolt mounting for secure installation. The compact design is suitable for applications with limited space.

• Low It minimizes damage to protected components on short circuit
• Controlled arc voltage reduces stress to circuit components during fuse clearing
• Choice of mounting types provides options for unique termination requirements

Product Highlights

Mersen A15QS500-4 high speed fuse protects diodes and other semiconductor devices. It is UL recognized and DC tested.

Product Information

Standard Information

• Brand: Mersen
• Manufacturer Part Number: A15QS500-4
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: A15QS500-4
• Manufacturer: Mersen
• Brand: Mersen
• Sub Brand: Amp-Trap®
• Country of Origin: Mexico
• Made in USA: No
• Amperage Rating: 500
• Application: Protection of heavy duty devices such as electrochemical rectifiers
• Connection: Blade
• Mounting: Bolt
• Special Features: Low I²t minimizes damage to protected components on short circuit Controlled arc voltage reduces stress to circuit components during fuse clearing Choice of mounting types provides options for unique termination requirements
• Standard: UL recognized component UL File E60314 AC: UL guide no. JFHR2 (1-4000A) DC tested to UL standard 198L parameters (1-4000A)
• UPC: 782001288112
• GTIN: 00782001288112
• Item Type: Round Body High-Speed Fuse-Links AC Protection
• Voltage Rating: 150
• Amps: 500A
• Item: Semiconductor Fuse
• Speed: High Speed
• Length: 1.88"
• Series: A15QS
• Diameter: 1.5"
• Fuse Amps: 500A
• Fuse Size: 1.5 in D
• Fuse Speed: High Speed
• Body Material: GMG
• Interrupt Rating: 200 kAIC
• AC Voltage Rating: 150V AC
• DC Voltage Rating: 150V DC
• Fuse Voltage Rating: 150V
• Amperage: 500 amp
• Voltage: 150V AC / DC
• Fuse Type: Fast-acting
• Acting Speed: Fast Acting
• Current Limiting: Yes
• Equivalent: Buss FWA Style
• Physical Size: 1.50" x 3.50"
• AC Interrupting Rating: 100,000 AIC
• DC Interrupting Rating: 100,000 AIC
• UL Recognized Component: Yes
• AC: UL Guide No. JFHR2 (1-4000A)
• DC: Tested to UL Standard 198L parameters (1-4000A)
• Ampere: 500 A
• Interrupt rating: 100kA
• Class: Semiconductor
• Shape: Bolt-On
• Approvals: UL
• Substitute parts: Bussmann FWA
• Body/Insulating Material: GMG
• Bolted: Bolted
• Connection/Terminal Material: Tin-Plated Brass
• Connection/Terminal Type: Blade
• UL Listed: Yes
