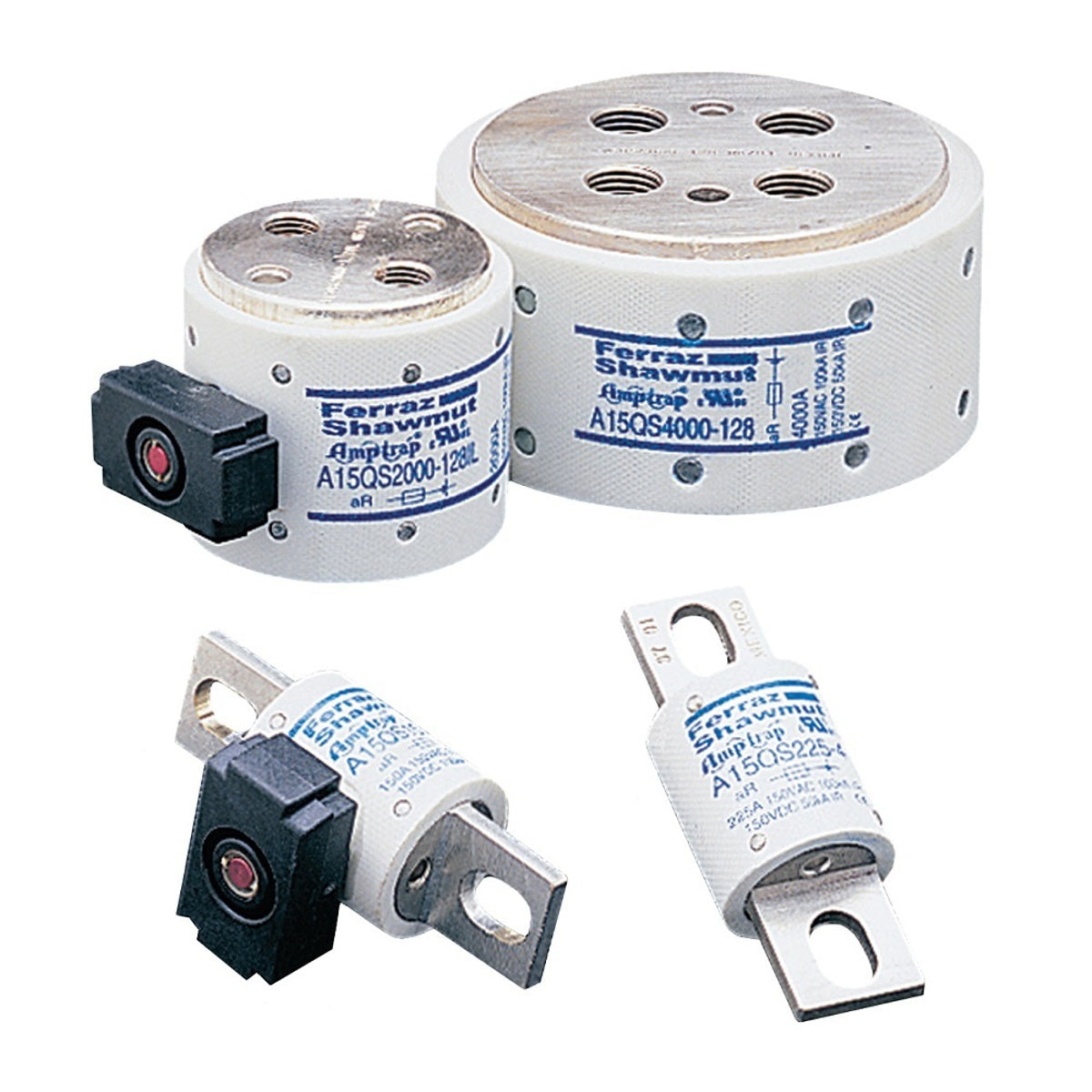

Mersen A15QS150-4 High Speed Fuse Amp-Trap 150VAC 150VDC 150A Blade

Product Description

Mersen A15QS150-4 is a high speed fuse rated for 150 volts AC and 150 volts DC, with a maximum current rating of 150 amperes. This fuse features an Amp-Trap design that provides protection for heavy-duty electrical devices, ensuring safety in various applications.

• Rated for 150VAC and 150VDC.
• Designed for protection of heavy-duty devices.
• Compact design for space-limited applications.

Product Highlights

The Mersen A15QS150-4 is suitable for high-speed protection in electric circuits, minimizing damage to sensitive components during short circuits. This fuse is essential for mitigating risks in systems like AC/DC drives and rectifiers.

Product Information

Standard Information

• Brand: Mersen
• Catalog Number: A15QS150-4

Technical Specifications

• Amperage Rating: 150 A
• Voltage Rating: 150 VAC / 150 VDC
• Body Size: 1.13 inches Diameter x 2.66 inches Length
• Mounting Type: Bolt
• Special Features: Low I²t rating reduces damage during faults
• Application: Protection for heavy-duty devices like electrochemical rectifiers
• Connection Type: Blade
• Standards and Approvals: RoHS Compliant, UL Listed File No. E60314
