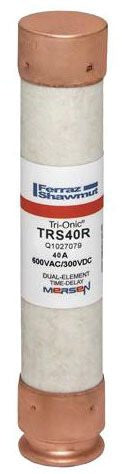

MERSEN 82140 Time Delay Fuse Class RK5 40A 600VAC/300VDC

Product Description

The MERSEN 82140 is a Class RK5 time-delay fuse. This fuse operates at 600VAC and 300VDC with a current rating of 40A and provides an interrupting rating of 200kA AC. The design features copper ferrule terminals and a polytube body for enhanced durability. It is suitable for clip mounting and adheres to standards such as UL 248-12 and CSA C22.2 248.1.

• Time delay characteristic for managing temporary overloads.
• Ideal for motor circuits and transformers.
• Compliant with UL and CSA standards.

Product Highlights

Utilized in various applications, the MERSEN 82140 fuse is reliable for protecting equipment against overloads and short circuits.

Product Information

Standard Information

• Fuse Class: RK5
• Fuse Characteristics: Time Delay

Technical Specifications

• Voltage Rating: 600 Volt AC / 300 Volt DC
• Current Rating: 40 Amp
• Interrupting Rating: 200 Kiloamp AC
• Terminal Type: Ferrule
• Diameter: 1.06 Inch
• Length: 5.5 Inch
• Approvals: UL 248-12, CSA C22.2 248.1, DC 248
• Mounting Type: Clip
• Terminal Material: Copper
• Body Material: Polytube
• Application: Motor Circuits, Transformers, General-Purpose Equipment
