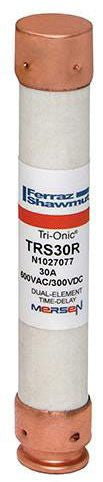

MERSEN 82138 Class RK5 Time Delay Fuse

Product Description

The Mersen 82138 Class RK5 time delay fuse is designed to provide reliable protection for electrical circuits. This fuse is rated for six hundred volts AC and three hundred volts DC at fifty to sixty Hertz. It has a current rating of thirty amps and an interrupting rating of two hundred kiloamps AC.

• Time delay feature to manage temporary overloads.
• Suited for motor circuits, transformers, and various general-purpose equipment.
• Complies with UL 248-12, CSA C22.2 248.1, and DC 248 standards.

Product Highlights

This fuse is ideal for use in installations requiring robust overload protection. Its time delay characteristic allows it to handle momentary surges without blowing.

Product Information

Standard Information

• Brand: MERSEN
• MPN: 82138

Technical Specifications

• Type: Class RK5
• Fuse Speed: Time Delay
• Voltage Rating: 600 Volt AC / 300 Volt DC
• Current Rating: 30 Amp
• Interrupting Rating: 200 Kiloamp AC
• Terminal Type: Ferrule
• Diameter: 0.81 Inch
• Length: 5 Inch
• Approvals: UL 248-12, CSA C22.2 248.1, DC 248
• RoHS Compliant: Yes
• Mounting Type: Clip
• Terminal Material: Copper
• Body Material: Polytube
• Application: Motor Circuits, Mains, Feeders, Branch Circuits, Transformers, Service Entrance Equipment, General-Purpose Equipment
