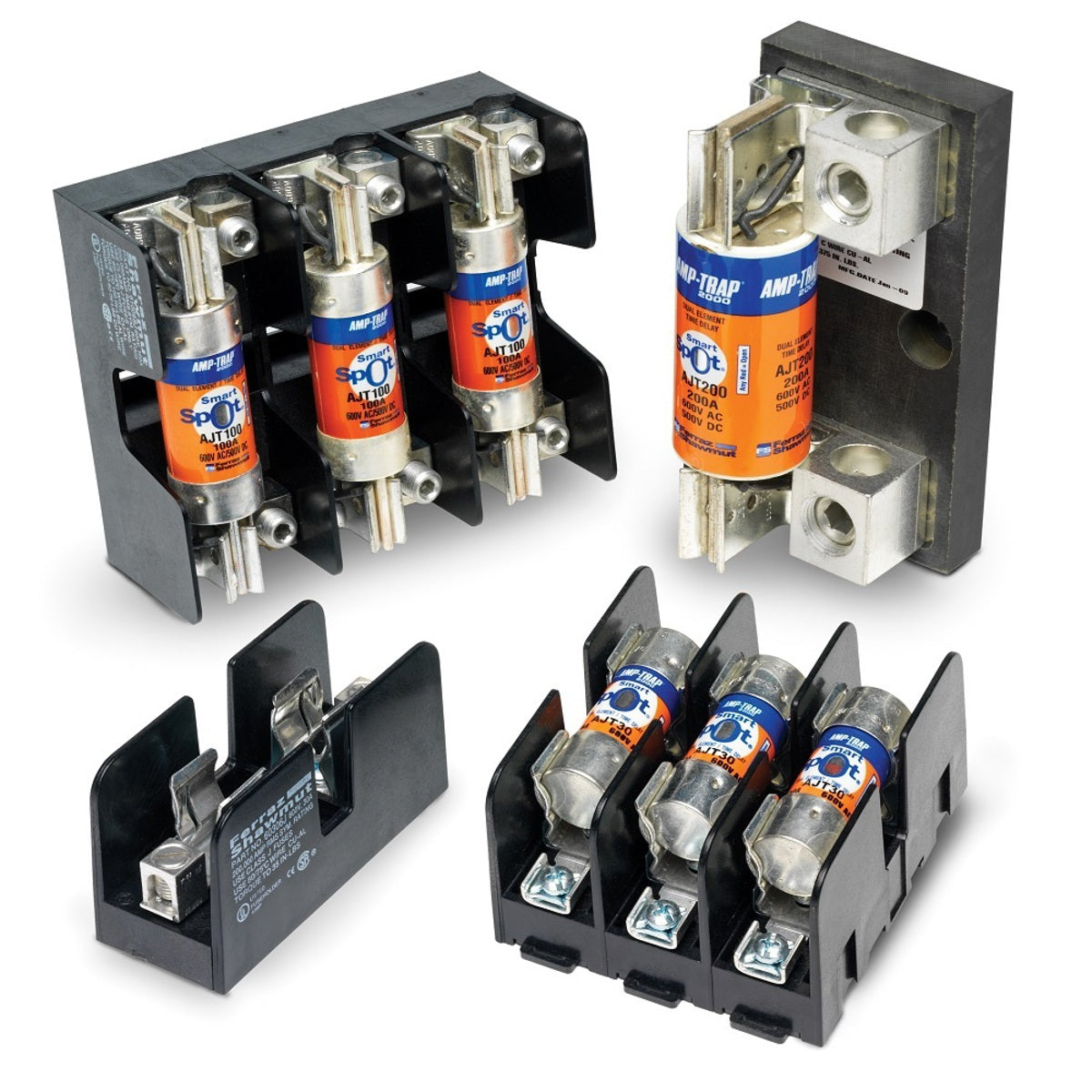

Mersen 61038J Fuse Block 600VAC 600VDC Class J 100A 3-Pole Copper Box

Product Description

The Mersen 61038J is a fuse block designed for 600 volts alternating current (VAC) and 600 volts direct current (VDC) applications. This block can handle an amperage of up to 100 amps and features three poles. It is made from a glass-filled polycarbonate material and is fitted with copper connectors.

• For 600V AC and DC applications
• Handles up to 100 amps
• 3-pole configuration with copper box connections

Product Highlights

This fuse block supports Class J fuses and is suitable for various sizes of wire, ranging from six gauge to two aught (2/0) wire. It is constructed to meet UL4248 standards and provides high conductivity with its tin-plated copper clips.

Product Information

Standard Information

• Brand: Mersen
• Manufacturer: Mersen

Technical Specifications

• Catalog Number: 61038J
• Voltage Rating: 600
• Amperage Rating: 100
• Number of Poles: 3
• Connection: Copper Box
• Material: Glass Filled Polycarbonate
• Mounting: Screw
• Country of Origin: Mexico
• UPC: 782001665203
• GTIN: 00782001665203
