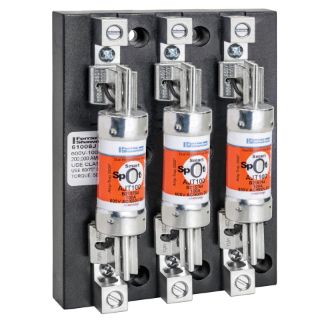

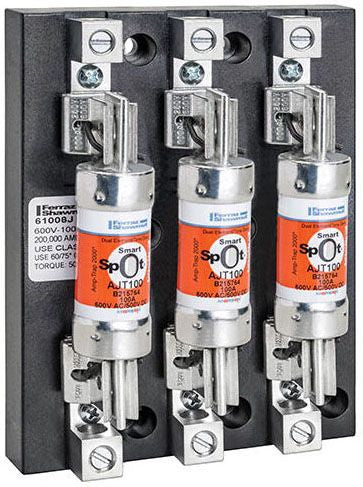

Mersen 61008J FER Open Style Fuse Block 600 VAC/VDC 100 A 3 Pole

Product Description

The Mersen 61008J is an open style fuse block designed to accommodate Class J fuses with a voltage rating of six hundred VAC and VDC. This product is rated for one hundred amps and is suitable for wire sizes ranging from twelve to two/zero AWG. The fuse block features three poles and is made from molded glass filled polycarbonate, ensuring durability in various applications.

• Compatible with AJT, A4J, and HSJ Series Fuses
• Compact design with an innovative adder block configuration
• High conductivity, tin-plated copper clips available in spring reinforced or non-spring options

Product Highlights

This fuse block is suitable for applications requiring motor control and load protection. It adheres to standards such as UL 4248-8 and CSA C22.2, ensuring compliance and safety in installations.

Product Information

Standard Information

• Brand: Mersen
• MPN: 61008J

Technical Specifications

• Amperage Rating: 100 A
• Voltage Rating: 600 VAC/VDC
• Connection Type: Box Lug
• Wire Size: 12 to 2/0 AWG
• Number of Poles: 3
• Mounting Type: Threaded
• Material: Glass Reinforced Polycarbonate
• Temperature Rating: -25 °C
