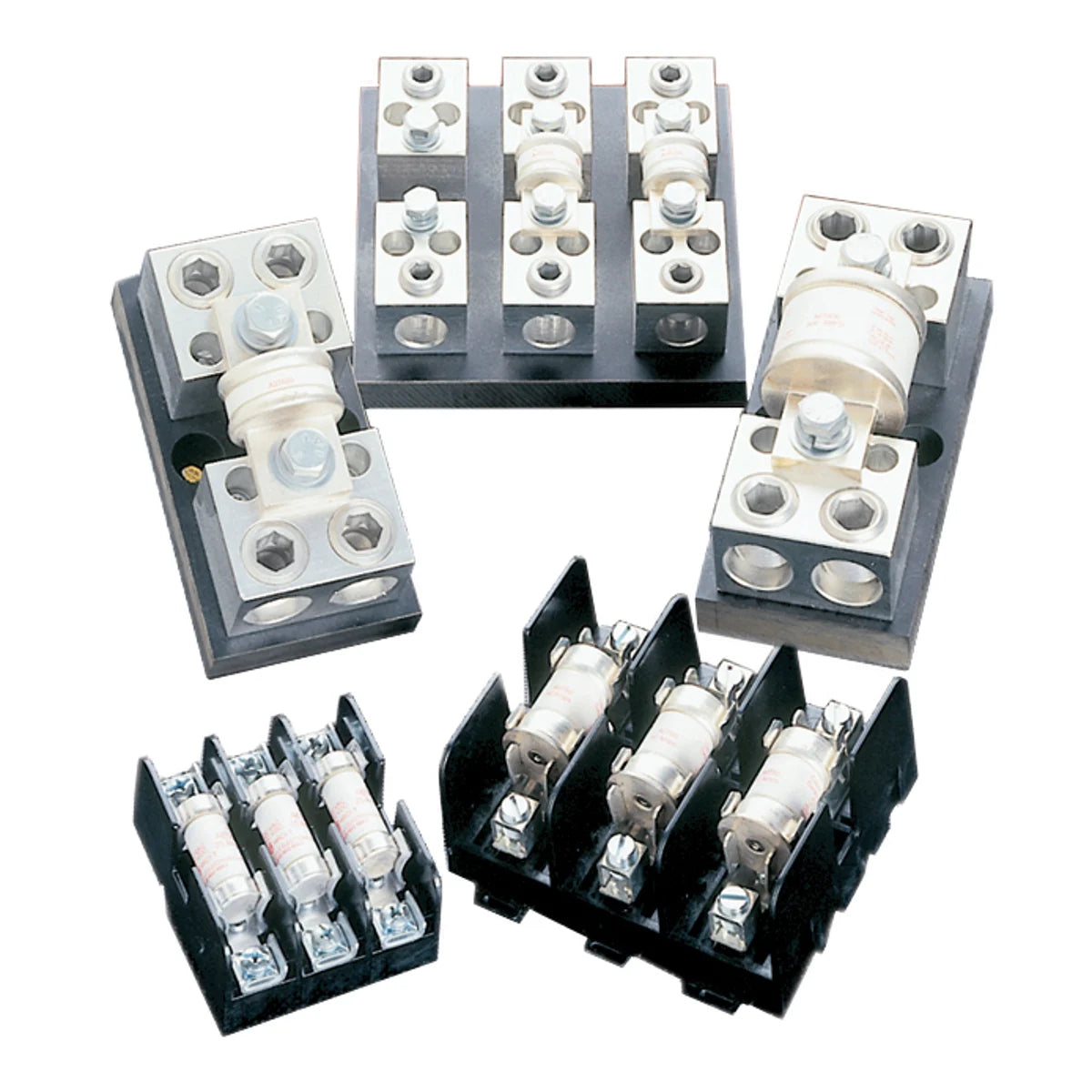

Mersen 60608T Fuse Block 600VAC 600VDC Class T 60A 3-Pole Box with Reinforced Clip

Product Description

The Mersen 60608T is a fuse block designed for both 600 VAC and 600 VDC applications, and it accommodates fuse ratings up to sixty amperes. This three-pole fuse block comes equipped with a reinforced clip for secure attachment. It supports wire sizes ranging from fourteen to two American Wire Gauge (AWG). The structure is crafted from glass-filled polycarbonate, ensuring durability and resistance to impact.

• Compatible with Class T fuses up to sixty amperes
• Designed for three-pole configurations
• Mounting options include DIN rail for easy installation

Product Highlights

This fuse block features high conductivity copper alloy clips and unique integral DIN rail adapters, enhancing operational safety and installation flexibility.

Product Information

Standard Information

• Manufacturer: Mersen
• UPC: 782001675608

Technical Specifications

• Catalog Number: 60608T
• Amperage Rating: 60 A
• Voltage Rating: 600 VAC/VDC
• Registration Type: Class T
• Material: Glass Filled Polycarbonate
• Connection Type: Box with Reinforced Clip
• Number of Poles: 3
• Size: 3.9 inches x 4.6 inches x 2.2 inches
