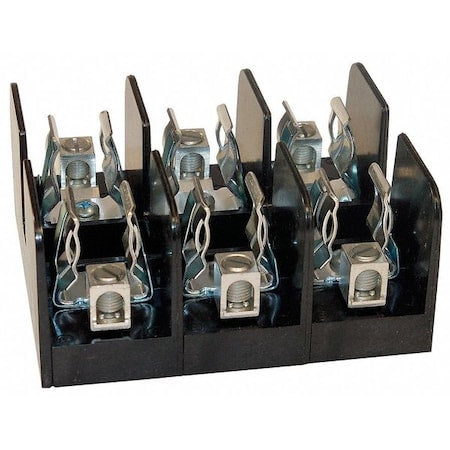

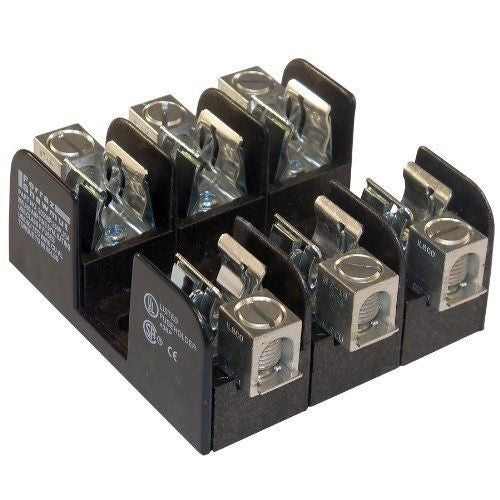

Mersen 60608J Fuse Block 600 VAC/VDC 60 A 3 Pole

Product Description

The Mersen 60608J open style Class J fuse block accommodates all Class J fuses ranging from 0 to 600 A, 600 V. It features screw, pressure plate, and box connectors suitable for stranded or solid copper or aluminum wire. The insulator is molded glass filled polycarbonate with a dielectric strength exceeding 2500 V.

• 200 kA short circuit current rating
• Accommodates Class J fuses from 0 to 600 A
• Suitable for use with AJT, A4J and HSJ Series Fuses

Product Highlights

This Mersen fuse block is designed for Class J fuses, offering a robust solution for overcurrent protection with a high short circuit current rating.

Product Information

Standard Information

• Brand: Mersen
• Manufacturer Part Number: 60608J
• Country of Origin: Mexico

Technical Specifications

• Class: J
• Wire Size: 14 to 2 AWG
• Mounting Type: Threaded
• Voltage Rating: 600 VAC/VDC
• Amperage Rating: 60 A
• Connection Type: Box Lug
• Number of Poles: 3
• Fuse Holder Code: AA
• Number of Phases: 3
• Temperature Rating: -25 deg C
• Suitable For Use With: AJT, A4J and HSJ Series Fuse
• Material: Glass Reinforced Polycarbonate
• Manufacturer: Mersen
• Standard & Approvals: UL 4248-8, File E52283, CSA C22.2, Class 6225, File 32169, RoHS Compliant
