Mersen 60607R Fuse Block 600VAC 600VDC Class R 60A 2-Pole

Product Description

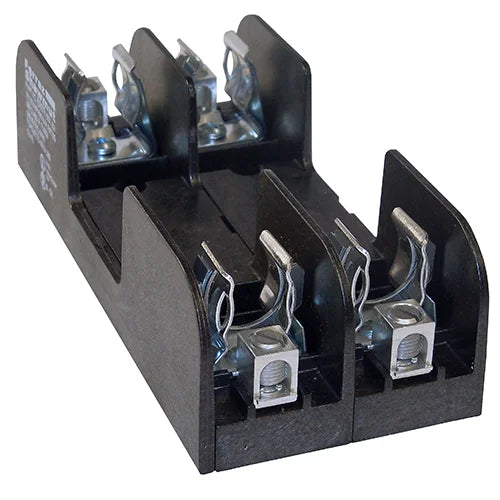

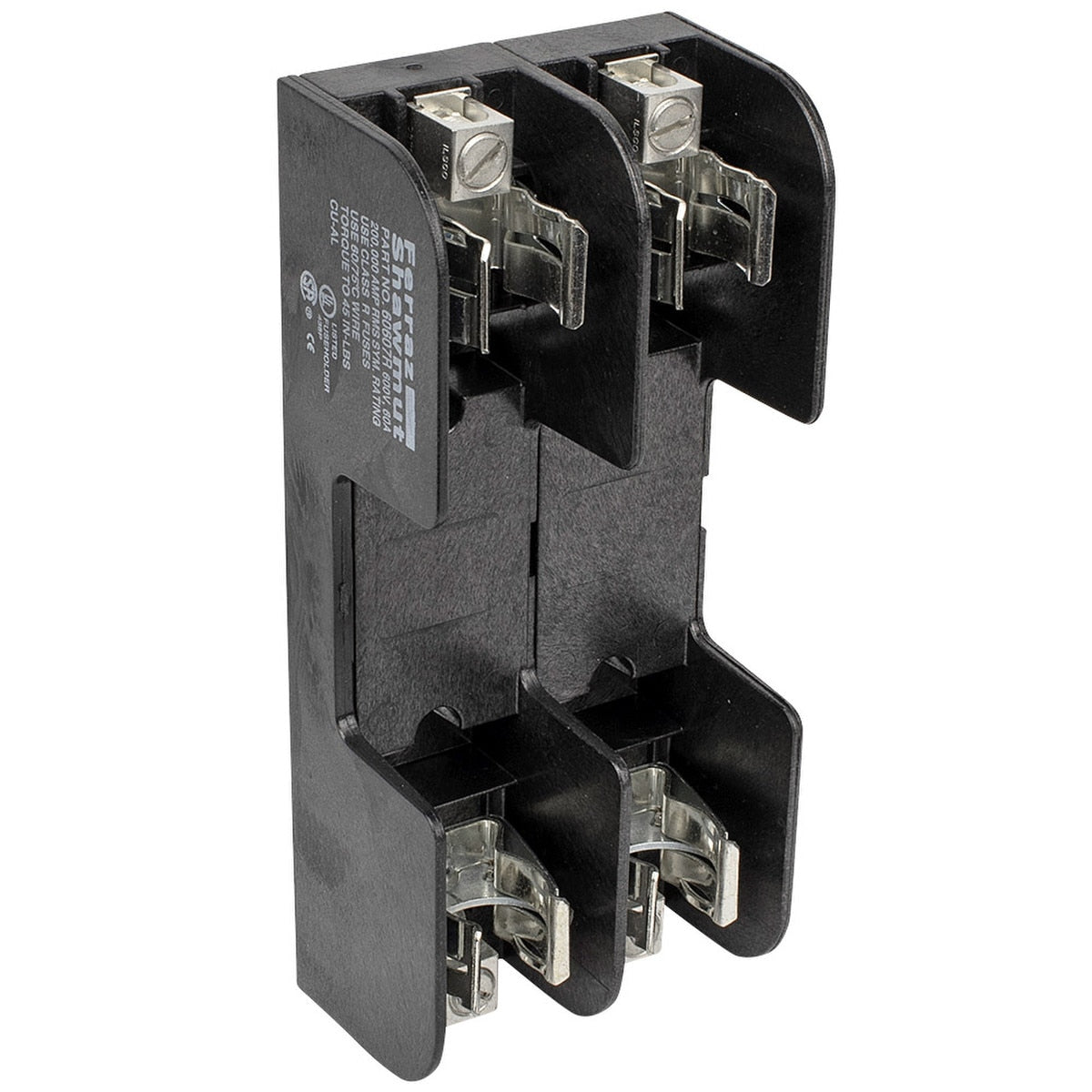

The Mersen 60607R fuse block accommodates Class R power fuses and supports a voltage rating of 600VAC/VDC. It features box with reinforced clip connections for 2 to 14 AWG wires. The insulators are constructed from molded glass filled polycarbonate. It is suitable for use with A6D-R, A6K-R and TRS-R fuses.

• Accommodates all Class H, K and R 250 and 600V power fuses
• Features box with reinforced clip connections
• Constructed from molded glass filled polycarbonate

Product Highlights

This fuse block is designed for industrial applications and provides reliable circuit protection with a 200kA short circuit current rating.

Product Information

Standard Information

• Brand: Mersen
• Manufacturer Part Number: 60607R
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: 60607R
• Manufacturer: Mersen
• Brand: Mersen
• Country of Origin: Mexico
• Made in USA: No
• Amperage Rating: 60 A
• Connection Type: Box
• Material: Glass Filled Polycarbonate
• Mounting Type: Screw
• Number of Poles: 2
• Standard & Approvals: UL 4248-12 (Class R), UL Listed, Guide IZLT, File E52283, Guide IZLT2, File E52283, CSA Certified Class 6225, File 32169, RoHS Compliant
• Item Type: UL/CSA Fuse Bases
• Voltage Rating: 600 V
• Class: R
• Fuse Holder Code: Q
• Number of Phases: 2
• Wire Size: 2 to 14 AWG Cu/Al
• Suitable For Use With: A6D-R, A6K-R and TRS-R Fuses
• Type: Open Style
• Vendor SKU: 60607R
• UNSPSC: 39121624
• Amp Range: 31 to 60 A
• Fuse Type: Industrial
• Body Material: Glass Filled Polycarbonate
• For Fuse Size: 5 1/2 in L x 1 1/16 in dia
• Fuse UL Class: R
• Connector Type: Box Lug
• Mounting Style: Bolt-Down
• For Fuse Series: A6D-R, A6K-R, TRS-R
• Fuse Block Style: Rejection
• Visual Indication: Nonindicating
• Frequency: 50/60 Hz
• Max. Operating Temp.: 80 deg C
• Rated Torque: 45 lb-in
• Spring Reinforced Clip: Yes
• Length (Straight Wireway): 1.59 in
• Indicating / Nonindicating: Nonindicating
• Short Circuit Current: 200 kA
• Amp Range of Fuse Block or Holder: 0 to 60A
• Fuse Block or Holder AC Voltage Rating: 600VAC
• Fuse Block or Holder DC Voltage Rating: 600VDC
• AC Voltage Rating: 600V
• DC Voltage Rating: 600V
• Made to Order: True
• Maximum Operating Temperature: 80°C
• Termination Style: Box Lug
• Fuse Size: 0.813" Dia x 3.000" L (20.65mm x 76.20mm)
• Current Rating (Amps): 60 A
• For Use With/Related Products: Class R Fuses
• Fuseholder Type: Block
• Number of Circuits: 2
• Voltage: 600V
• Orientation: Horizontal
