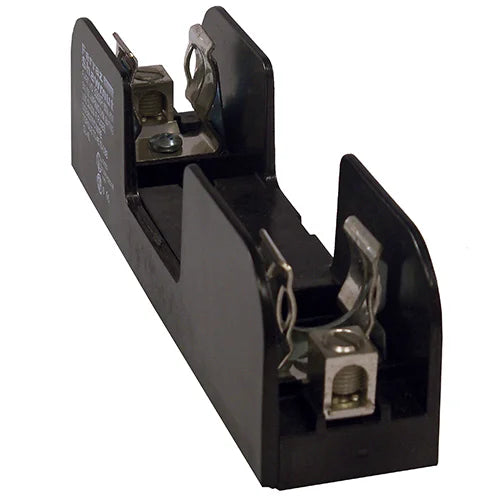

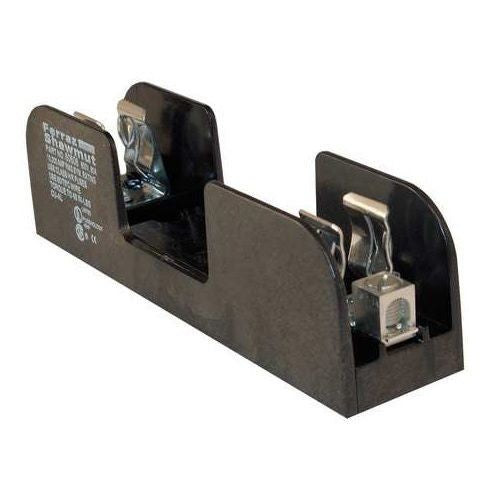

Mersen 60606R Fuse Block 600VAC/VDC Class R 60A 1-Pole Box with Reinforced Clip

Product Description

The MERSEN 60606R is a Class R fuse block that accommodates all Class H, K, and R 250 and 600V power fuses. It features a choice of screw, pressure plate, box, and special order stud connectors for a wide range of stranded or solid copper or aluminum wire. Insulators are molded glass-filled polycarbonate (GFPC).

• Accommodates Class H, K, and R 250 and 600V power fuses
• Features high conductivity tinplated copper fuse clips
• Insulators made of molded glass-filled polycarbonate

Product Highlights

The MERSEN 60606R fuse block is suitable for use with A6D-R, A6K-R and TRS-R fuses and has a 200kA short circuit current rating.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: 60606R

Technical Specifications

• Item number: 60606R
• EAN/UPC Code: 782001750442
• Rated voltage AC UL: 600 V
• Rated voltage DC UL: 600 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 60 A
• ROHS Compliant: Yes
• AC or DC: AC/DC
• Fuse Class: Class R
• Short Circuit Current Rating (SCCR): 200 kA
• Number of Poles: 1
• Fuse Installation Method: Clip-in
• Torque Rating: 45 lb-in
• Max Fuse Rating: 60 A
• Installation Mounting: Direct Screw Mount
• Product Width: 1.63 in
• Product Length: 7 in
• Product Height: 2 in
• Product group: Fuse Bases
• Body/Insulating Material: Glass Filled Polycarbonate
• Manufacturer: Mersen
• Fuse Amperage Rating: 60 Amp
• Fuse Type (UL): Class R
• Component: Fuse Holder
• Mounting: Screw
• Fuse Voltage Rating: 600 Volt
• Material: GFPC
• Mounting Type: Threaded
• Number of Phases: 1
• Catalog ID: GOU60606R
• Class: R
• Connection Type: Box
• Suitable For Use With: A6D-R, A6K-R and TRS-R Fuses
• Type: Open Style
• Voltage Rating: 600 VAC/VDC
• Wire Size: 2 to 14 AWG Cu/Al
• Standard & Approvals: UL 4248-12 (Class R), UL Listed, Guide IZLT, File E52283, Guide IZLT2, File E52283, CSA Certified Class 6225, File 32169, RoHS Compliant
• UNSPSC Code: 39120000
• Alternate Mfr Part Number: K212391
• Current Rating: 60 A
• Primary Type: Fuse Holder
• Weight: 0.39 lb
