Mersen 60605R Fuse Block 600VAC 600VDC Class R 60A Adder Box

Product Description

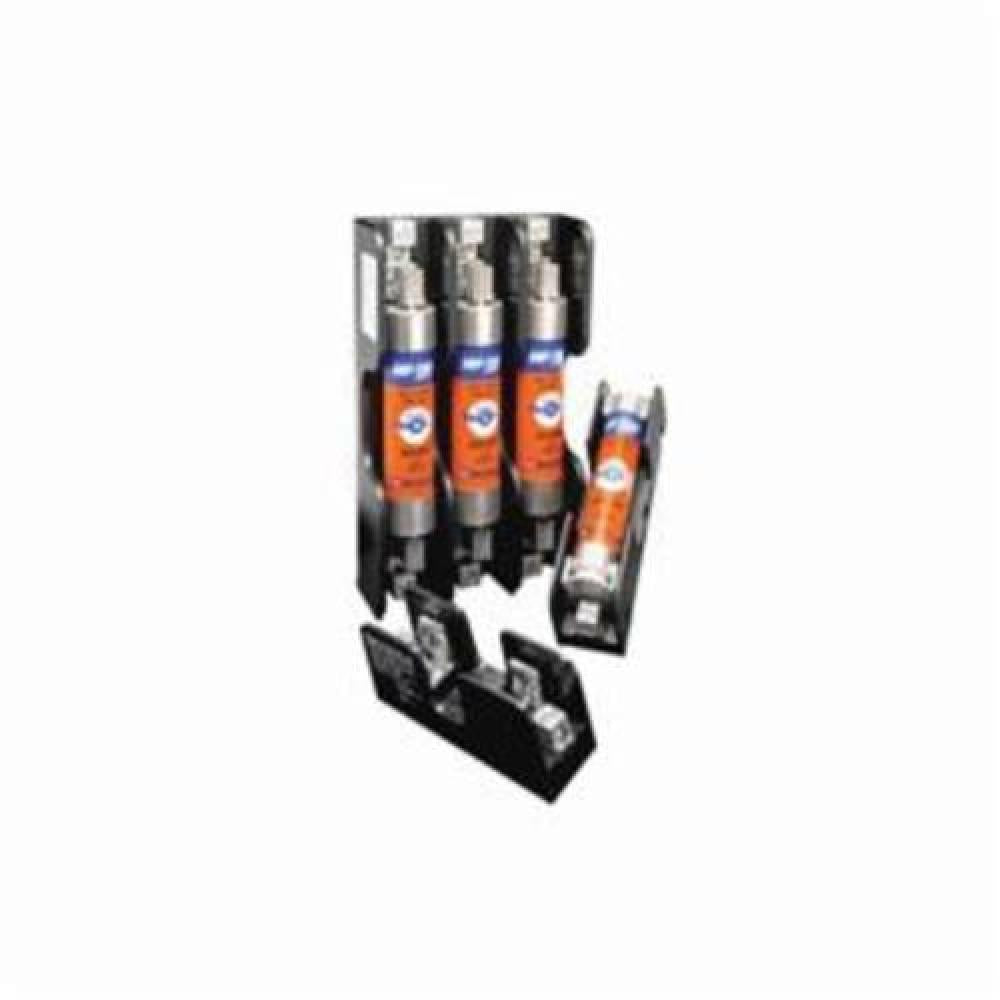

The MERSEN 60605R is a Class H, K, and R fuse block that accommodates all Class H, K, and R 250 and 600V power fuses. It features a unique adder block which can be snapped onto 1-, 2- or 3-pole blocks to form multipole segmented blocks. All fuse clips are made of high conductivity tinplated copper.

• Rated for 600VAC and 600VDC
• Accepts Class R fuses
• Features a reinforced clip

Product Highlights

The MERSEN 60605R fuse block is ideal for use in a variety of electrical applications. It is easy to install and provides reliable protection against overcurrents.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: 60605R
• Country of Origin: USA/Canada

Technical Specifications

• Item number: 60605R
• Description: Fuse Block 600VAC 600VDC Class R 60A Adder Box with Reinforced Clip
• EAN/UPC Code: 782001756673
• Rated voltage AC UL: 600 V
• Rated voltage DC UL: 600 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 60 A
• ROHS Compliant: Yes
• AC or DC: AC/DC
• Fuse Class: Class R
• Short Circuit Current Rating (SCCR): 200 kA
• Number of Poles: Adder
• Fuse Installation Method: Clip-in
• Torque Rating: 5.084 N m
• Max Fuse Rating: 60 A
• Installation Mounting: Direct Screw Mount
• Product Width: 37.1 mm
• Product Length: 177.8 mm
• Product Height: 50.8 mm
• Product group: Fuse Bases
• Body/Insulating Material: Glass Filled Polycarbonate
• UNSPSC Code: 39120000
• Alternate Mfr Part Number: Q211361
• Brand: Mersen
• Class: Class R
• Current Rating: 60 A
• Dimensions: 7 in L x 1.46 in W x 2 in H
• Manufacturer Part Number: 60605R
• Primary Type: Fuse Holder
• Type: Open Style
• Voltage Rating: 600 VAC/VDC
• Connection Type: Box Lug
• Number of Phases: 1
• Standard/Approvals: RoHS Compliant|UL 4248-12 (Class R)|Guide IZLT, Guide IZLT2|E52283|CSA Certified|Class 6225, 32169
• Suitable For Use With: A6D-R, A6K-R and TRS-R Series Fuse
• Unspsc: 39121624
• Wire Size: 14 to 2 AWG
