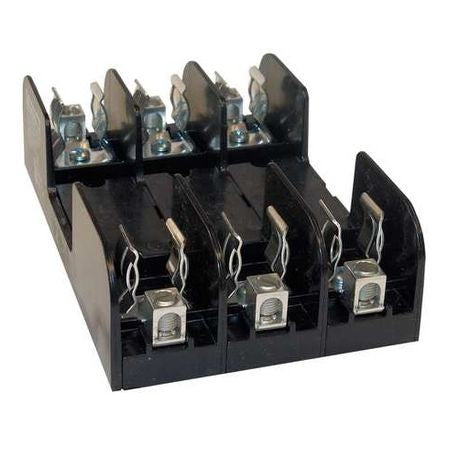

Mersen 60603J Fuse Block 600VAC 600VDC Class J 60A 3-Pole Box Screw Connection Glass Filled Polycarbonate

Product Description

The Mersen 60603J is a robust Class J fuse block designed for power distribution in demanding environments. Engineered for reliability, this fuse block supports a voltage rating of up to 600 volts AC/DC and an amperage rating of 60A, making it highly versatile.

• High conductivity tin-plated copper clips, option for spring reinforced.
• Molded glass filled polycarbonate (GFPC) or phenolic insulators.
• Features a unique adder block configuration for multi-pole field assembly.

Product Highlights

This fuse block is designed for durability and high performance, featuring a 200kA short-circuit current rating and compatibility with a range of wire sizes. It accommodates all Class J fuses, enhancing safety and convenience.

Product Information

Standard Information

• Brand: Mersen
• Mounting Type: Screw
• Number of Poles: 3

Technical Specifications

• Catalog Number: 60603J
• Amperage Rating: 60
• Connection Type: Screw Box Connector
• Material: Glass Filled Polycarbonate
• Phase: 3
• Voltage Rating: 600
• Size: 4 x 4.65 x 2.12 inches
• Standard & Approvals: UL 4248-8, CSA C22.2 No. 6225, Class 32169
