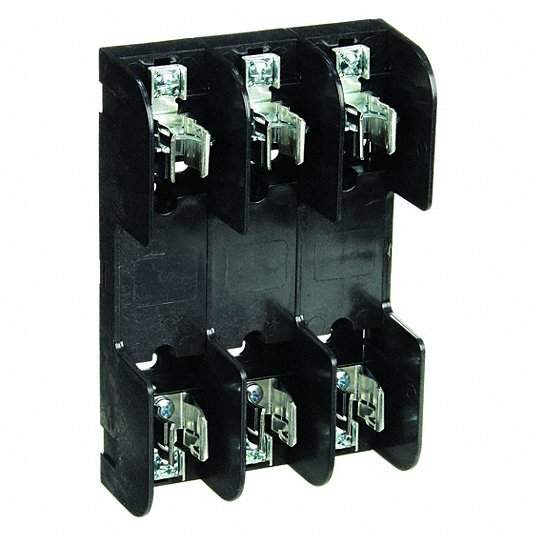

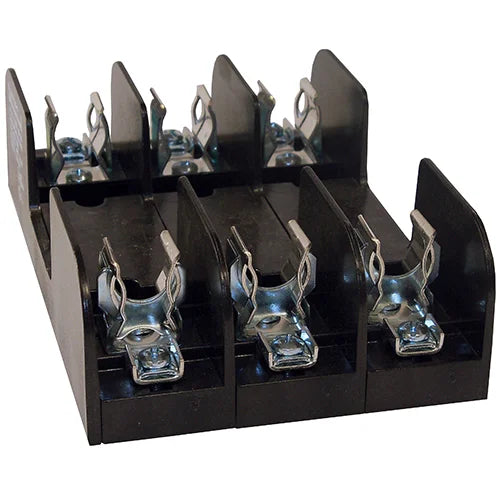

Mersen 60328R Fuse Block 600VAC 600VDC Class R 30A 3-Pole

Brand: MERSEN
SKU: 60328R
Availability: In Stock

Ships same day if ordered by 12 pm
$120.64
$120.64
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The MERSEN 60328R is a fuse block that accommodates all Class H, K, and R 250 and 600V power fuses. It features screw, pressure plate, box, and special order stud connectors to fit a wide range of stranded or solid copper or aluminum wire. This fuse block offers reliable overcurrent protection for motors, transformers, and industrial equipment.

  • Accommodates Class H, K, and R fuses
  • Features pressure plate connectors
  • Offers overcurrent protection

Product Highlights

The MERSEN 60328R fuse block is designed for high interrupting capacity and supports both time-delay and fast-acting fuses.

Product Information

Standard Information

  • Brand: MERSEN
  • Manufacturer Part Number: 60328R
  • Country of Origin: United States
Technical Specifications
Item number
60328R
Description
Fuse Block 600VAC 600VDC Class R 30A 3-Pole Pressure Plate with Reinforced Clip
EAN/UPC Code
782001759339
Rated voltage AC UL
600 V
Rated voltage DC UL
600 V
Frequency (Hz)
50/60 Hz
Ampere Rating
30 A
ROHS Compliant
Yes
AC or DC
AC/DC
Fuse Class
Class R
Short Circuit Current Rating (SCCR)
200 kA
Number of Poles
3
Fuse Installation Method
Clip-in
Torque Rating
20 lb-in
Max Fuse Rating
30 A
Installation Mounting
Direct Screw Mount
Product Width
4.56 in
Product Length
7 in
Product Height
2 in
Product group
Fuse Bases
Body/Insulating Material
Glass Filled Polycarbonate
Product Weight
0.85 lb
Manufacturer
Mersen / Ferraz Shawmut
Category
Circuit Protection
Fuseholders
Fuseholders
For Use With/Related Products
Class R Fuses
Fuse Type
Cartridge
Packaging
Bulk
Fuseholder Type
Block
Part Status
Active
Number of Circuits
3
Mounting Type
Chassis Mount
Voltage
600V
Fuse Size
0.563" Dia x 2.000" L (14.30mm x 50.80mm)
Orientation
Horizontal
Current Rating (Amps)
30 A
Termination Style
Screw Terminal, Pressure Plate
Brand
Mersen
Manufacturer Part Number
60328R
Mounting Style
Bolt-On
Type
Fuse Block
Maximum Amperage
30 A
AC Voltage Rating
600 V AC
Current - Maximum
30 A
Current - Minimum
0 A
DC Voltage Rating
600 V DC
Compatible Fuse Series
A6D-R, A6K-R, FRS-R, KLSR, KTS-R, KWS-R, LLSRK, LPS-RK, TRS-R
Compatible Fuse Class or Type
Class R
Fuse Block Terminal Type
Pressure Plate
Fuse Block Design
Open
Fuse Block Mounting Style
Bolt-Down
Fuse Block Style
Rejection
Overall Height
2.12 in
Overall Length
4 in
Overall Width
4.66 in
Standards
CSA Certified; UL Listed
Visual Indication
Non-Indicating
Wire Size - Maximum
10 AWG
Wire Size - Minimum
14 AWG
