Mersen 60307R Fuse Block 600VAC 600VDC Class R 30A 2-Pole

Product Description

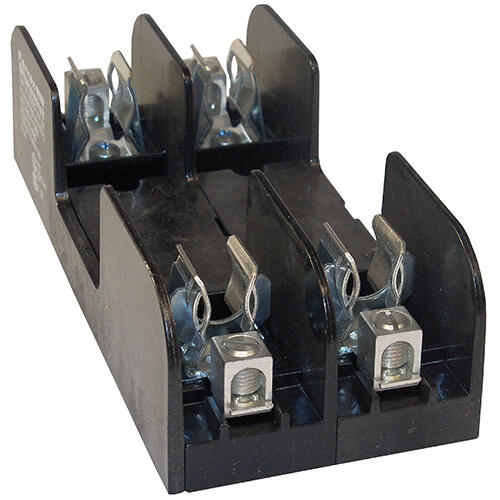

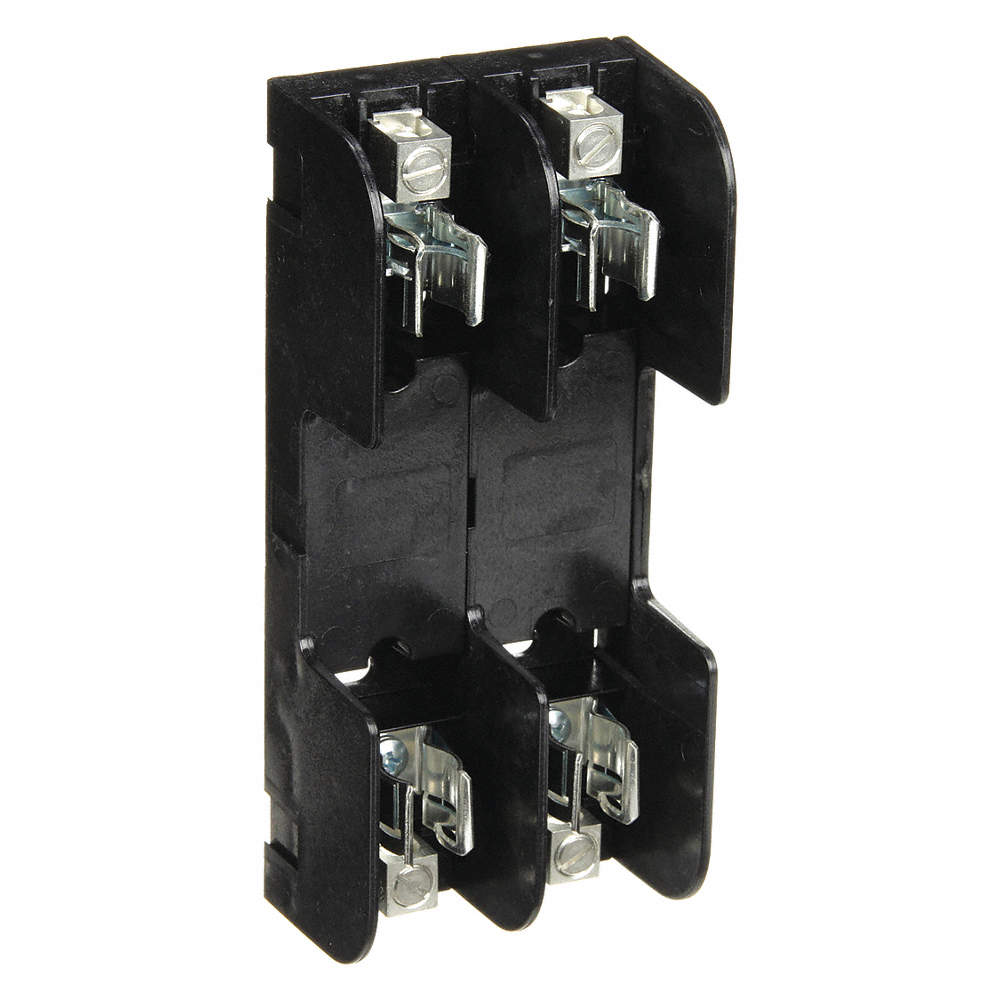

The Mersen 60307R fuse block accommodates Class R power fuses and supports a wide range of stranded or solid copper or aluminum wire. The insulators are constructed from molded glass filled polycarbonate (GFPC). This fuse block has a voltage rating of 600VAC/VDC and an amperage rating of 30A.

• Accommodates Class R power fuses.
• Features box with reinforced clip connection.
• Constructed with glass filled polycarbonate.

Product Highlights

The Mersen 60307R fuse block is suitable for use with A6D-R, A6K-R, and TRS-R fuses and has a 200kA short circuit current rating.

Product Information

Standard Information

• Brand: Mersen
• Manufacturer Part Number: 60307R
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: 60307R
• Manufacturer: Mersen
• Brand: Mersen
• Amperage Rating: 30 A
• Connection: Box with Reinforced Clip
• Material: Glass Filled Polycarbonate
• Mounting: Screw
• Number of Poles: 2-Pole
• Standard: All fuse blocks meet the requirements of UL 4248 UL listed, guide IZLT, File E52283 UL recognized component guide IZLT2, file E52283 CSA certified class 6225, File 32169
• Item Type: UL/CSA Fuse Bases
• Voltage Rating: 600 VAC/VDC
• Class: R
• Fuse Holder Code: P
• Type: 603
• Number of Phases: 2
• Mounting Type: Threaded
• Wire Size: 14 to 2 AWG
• Suitable For Use With: A6D-R, A6K-R and TRS-R Fuses
• GTIN: 00782001759605
• UNSPSC: 39121624
• Vendor SKU: 60307R
• UPC: 782001759605
• Standard & Approvals: UL 4248-12 (Class R), UL Listed, Guide IZLT, File E52283, Guide IZLT2, File E52283, CSA Certified Class 6225, File 32169, RoHS Compliant
• Short Circuit Current (KA): 200 kA
• Item: Fuse Block
• Width: 3.09 in
• Height: 7 in
• Length: 2 in
• Series: 6HKRFB
• Amp Range: 0 to 30 A
• Fuse Type: Industrial
• Wire Range: 14 to 2 AWG
• Body Material: Glass Filled Polycarbonate
• For Fuse Size: 5 in L x 13/16 in dia
• Fuse UL Class: R
• Connector Type: Box Lug
• Fits Fuse Type: Industrial
• Mounting Style: Bolt-Down
• For Fuse Series: A6D-R, A6K-R, TRS-R
• Fuse Block Style: Rejection
• Visual Indication: Nonindicating
• Frequency Range (Hz): 50/60 Hz
• Max. Operating Temp.: 80 deg C
• Rated Torque (In.-Lb.): 35 lb-in
• Spring Reinforced Clip: Yes
• Length (Straight Wireway): 2.0 in
• Indicating / Nonindicating: Nonindicating
• Fuse Block or Fuse Holder Type: Fuse Block
• Amp Range of Fuse Block or Holder: 0 to 30A
• Fuse Block or Holder AC Voltage Rating: 600VAC
• Fuse Block or Holder DC Voltage Rating: 600VDC
• Rated voltage AC UL: 600 V
• Rated voltage DC UL: 600 V
• Ampere Rating: 30 A
• ROHS Compliant: Yes
• AC or DC: AC/DC
• Fuse Class: Class R
• Fuse Type/Class: Class R
• Fuse Installation Method: Clip-in
• Torque Rating: 3.954 N m
• Max Fuse Rating: 30 A
• Installation Mounting: Direct Screw Mount
• Product Width: 78.5 mm
• Product Length: 177.8 mm
• Product Height: 50.8 mm
• Product group: Fuse Bases
• Part Number: 60307R
• Volt: 600
• Category: Fuses
• Subcategory: Fuse Holder
