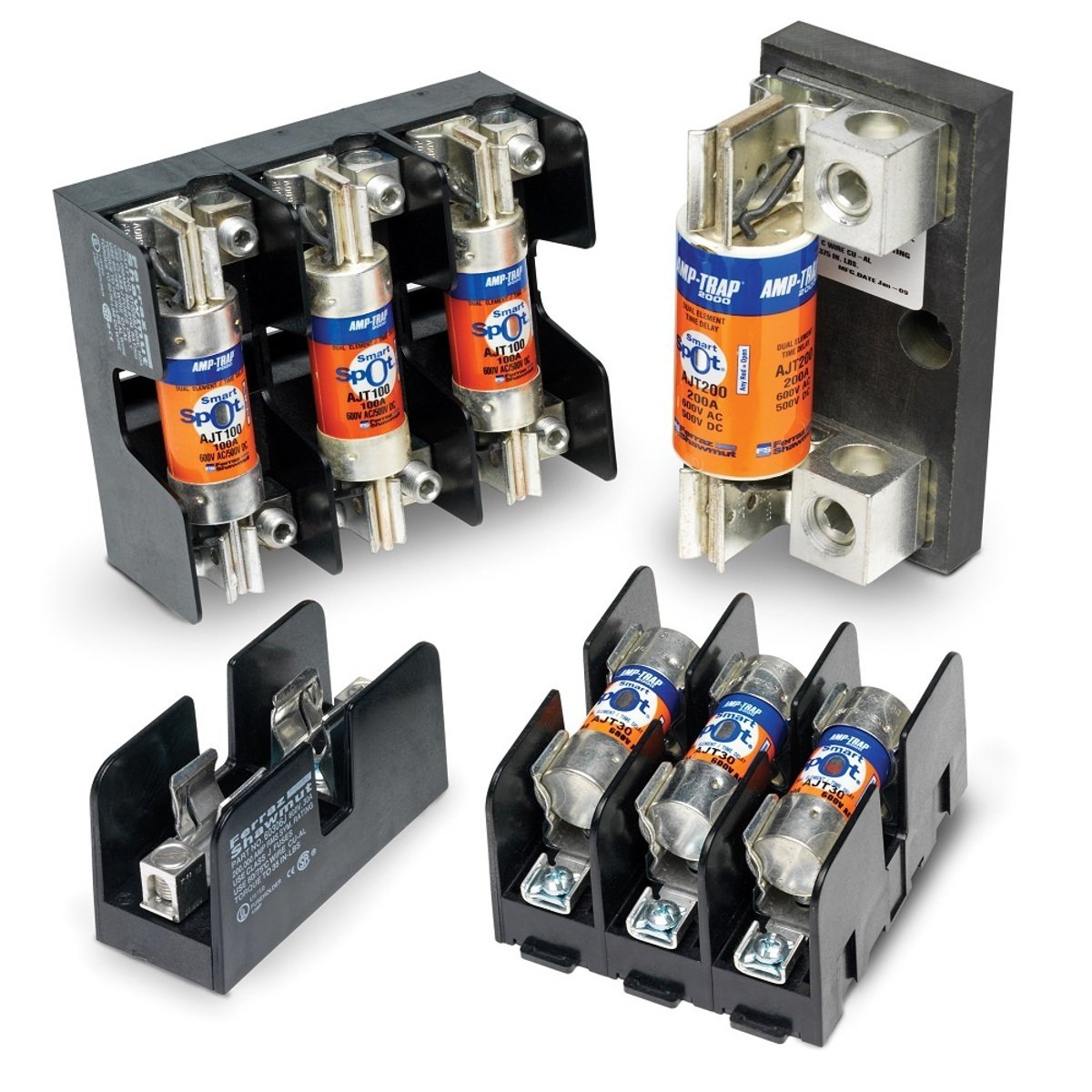

Mersen 60303J Fuse Block 600VAC 600VDC Class J 30A 3-Pole Box

Product Description

The Mersen 60303J is a fuse block designed for use with Class J fuses, rated for six hundred volts alternating current and direct current. This unit supports up to thirty amps of current and is suitable for use in various electrical applications. The block features a three-pole configuration and is designed for easy installation.

• Rated for 600VAC and 600VDC.
• Accommodates wire sizes from fourteen to two AWG.
• Constructed using glass-filled polycarbonate material.

Product Highlights

This fuse block provides a reliable connection and is made for long-lasting use in industrial settings.

Product Information

Standard Information

• Catalog Number: 60303J
• Manufacturer: Mersen

Technical Specifications

• Amperage Rating: 30
• Number of Poles: 3
• Voltage Rating: 600
• Connection Type: Box
• Mounting Type: Screw
• Material: Glass Filled Polycarbonate
• Special Features: Class J Blocks (600V) use with AJT, A4J, HSJ
• Standard: UL4248 compliant
