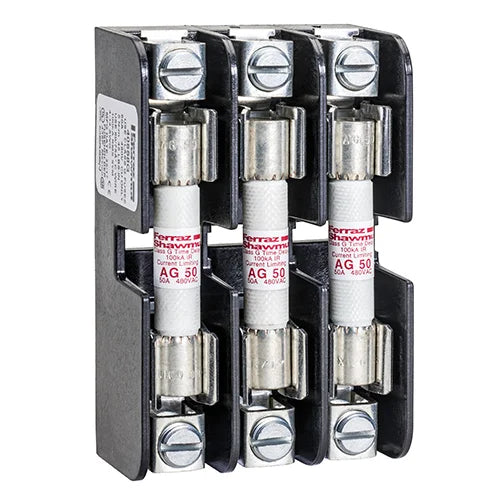

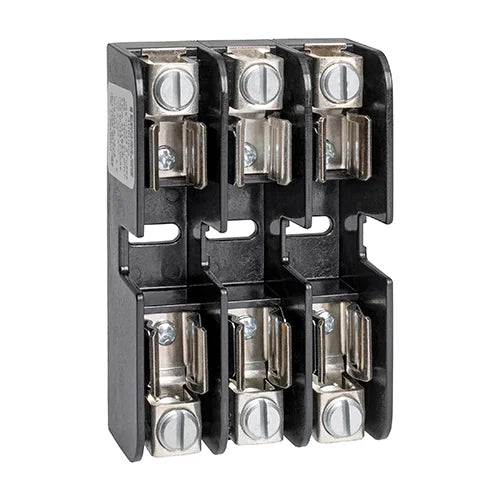

Mersen 40608G Fuse Block 480VAC 480VDC Class G 60A 3-Pole Box with Reinforced Clip

Product Description

The MERSEN 40608G is a Class G fuse block that accommodates 15, 20, 30, and 60 ampere Class G fuses. It features box, screw, or pressure-plate connectors for a wide range of stranded or solid copper wire. The insulators are glass-filled polycarbonate (GFPC) with a dielectric strength exceeding 2500V. It can be used to form multi-pole segmented blocks.

• Accommodates all 15, 20, 30 and 60 ampere Class G fuses
• Choice of box, screw or pressure-plate connectors
• Insulators are glassfilled polycarbonate (GFPC) with verified dielectric strength in excess of 2500V

Product Highlights

The MERSEN 40608G fuse block is ideal for electrical panels, control circuits, and various industrial applications requiring reliable overcurrent protection.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: 40608G
• Country of Origin: Mexico

Technical Specifications

• Item number: 40608G
• Description: Fuse Block 480VAC 480VDC Class G 60A 3-Pole Box with Reinforced Clip
• Rated voltage AC UL: 480 V
• Rated voltage DC UL: 480 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 60 A
• ROHS Compliant: Yes
• AC or DC: AC/DC
• Fuse Class: Class G
• Short Circuit Current Rating (SCCR): 100 kA
• Number of Poles: 3-Pole
• Wiring range: Cu #10-14
• Fuse Installation Method: Clip-in
• Torque Rating: 45 lb-in
• Max Fuse Rating: 60 A
• Installation Mounting: Direct Screw Mount
• Product Width: 2.38 in
• Product Length: 3.78 in
• Product Height: 1.4 in
• Product group: Fuse Bases
• Body/Insulating Material: Glass Filled Polycarbonate
• UNSPSC Code: 39120000
• Alternate Mfr Part Number: F216481
• Brand: Mersen
• Current Rating: 60 A
• Features: Unique integral DIN-rail adapters for 15, 20 & 30A blocks Unique adder-block design (all ampere ratings) for design flexibility Spring reinforcing standard for 60A clips Features high conductivity copper alloy fuse clips
• Manufacturer Part Number: 40608G
• Mounting Style: Direct Screw Mount
• Primary Type: Fuse Holder
• Type: Open Style
• Voltage Rating: 480 V
• Amperage: 60 Amp
• Fuse Interrupt Rating: 60 A
• Fuse Type: Class G
• Insulation Material: GFPC
• Max Operating Temperature: 80 degrees C
• Rated Voltage AC: 480 V
• Rated Voltage DC: 480 V
• TC Connection: Aluminum Box
• Torque: 45 lb-in
• Voltage: 480 Volt
• Class: G
• Height: 1.4 Inch
• Length: 3.78 Inch
• Width: 2.38 in
• Connection Type: Aluminum Box
• Material: Glass Reinforced Polycarbonate
• Mounting Type: Threaded
• Number of Phases: 3
• Suitable For Use With: AG Series Fuse
• Temperature Rating: 125 deg C
• Wire Size: 14 to 2 AWG
• Model: 40608G
