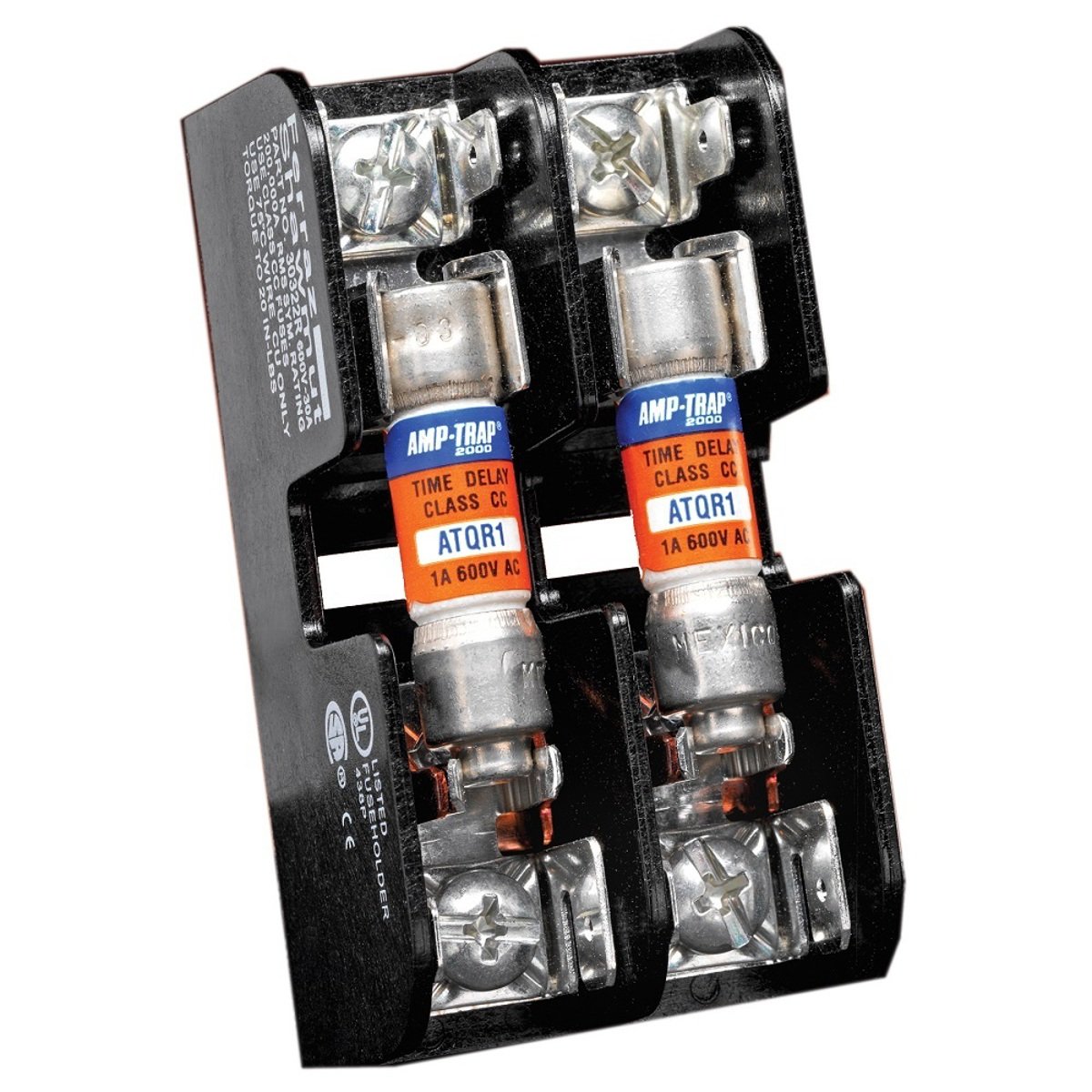

Mersen 30322R Open Style Fuse Block 600 VAC/VDC 30 A 2 Poles

Product Description

The Mersen 30322R is an open-style fuse block designed for handling 600 volts and 30 amperes. This fuse block is compatible with Class CC midget fuses measuring one and a half by thirteen thirty-second inches. The design allows for simple installation with double quick connects at both ends for convenient wiring. The 303 Series features a choice of box, screw, or pressure plate connectors, making it versatile for a wide range of electrical applications.

• Open-style design for easy access
• Compatible with Class CC fuses
• Pressure plate connection for secure wiring

Product Highlights

This fuse block accommodates all 30 ampere Class CC fuses and supports a wide range of stranded or solid copper wire.

Product Information

Standard Information

• Manufacturer: Mersen
• Part Number: 30322R

Technical Specifications

• Voltage Rating: 600 VAC/VDC
• Amperage Rating: 30 A
• Number of Poles: 2
• Fuse Length: 1-1/2 inches
• Fuse Diameter: 13/32 inches
• Wire Size: 14 to 10 AWG
• Material: Glass Reinforced Polycarbonate
• Mounting Type: DIN Rail
• Temperature Rating: 125 degrees C
• Suitable for Use With: ATDR, ATMR, and ATQR Series Fuses
• UNSPSC Code: 39121624
